MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-23 D/C:09+
NSS20101JT1G, NSS20200W6T1G, NSS20201LT1G Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: SOT-23
D/C: 09+
Description: TRANS NPN 20V 4A SOT-23
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NSS12200WT1G
File Size: 46436 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NSS12200WT1G
File Size: 46436 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NSS12200WT1G
File Size: 46436 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download

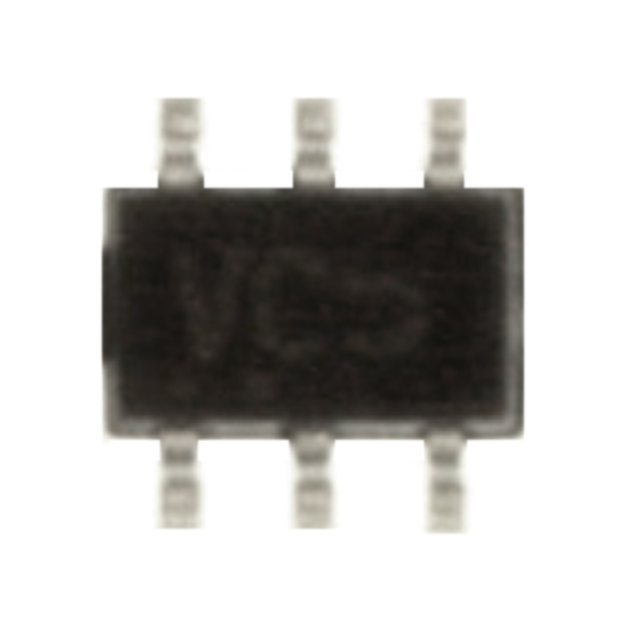

| Technical/Catalog Information | NSS20200W6T1G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | PNP |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| Current - Collector (Ic) (Max) | 2A |
| Power - Max | 555mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 220 @ 500mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 215mV @ 20mA, 2A |
| Frequency - Transition | 100MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-70-6, SC-88, SOT-323-6, SOT-363 |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NSS20200W6T1G NSS20200W6T1G NSS20200W6T1GOSDKR ND NSS20200W6T1GOSDKRND NSS20200W6T1GOSDKR |
| Technical/Catalog Information | NSS20201LT1G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| Current - Collector (Ic) (Max) | 2A |
| Power - Max | 460mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 200mA, 2A |
| Frequency - Transition | 150MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-3, TO-236-3, Micro3?, SSD3, SST3 |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NSS20201LT1G NSS20201LT1G NSS20201LT1GOSDKR ND NSS20201LT1GOSDKRND NSS20201LT1GOSDKR |
