The L9907N is a monolithic integrated power comparator with full bridge output configuration, intended for driving DC motors in positioning systems, optimized for headlight adjustment application and respecting the automotive electronics environmental conditions.
L9907ND Maximum Ratings
Symbol
Parameter
Value
Unit
VSDC
DC Supply Voltage
26
V
VSP
Supply Voltage Pulse (T 400ms)
50
V
IOUT_DC
DC Output Current
±0.4
A
IOUT_P
Output Current Pulsed (100ms)
0.8
A
IIN
DC Input Current
±10
mA
IIN
Input Current Pulse (2ms)
±40
mA
Ts
Storage Shutdown Junction Temperature Range (*)
150
°C
(*) Recommended maximal Tamb 105°C
L9907ND Features
·FULL BRIDGE OUTPUT CONFIGURATION WITH LOW SATURATION VOLTAGE LESS THAN 3.2V AT OUTPUT CURRENT 0.7A ·OPERATING SUPPLY VOLTAGE RANGE 7V TO 18V. SUPPLY OVERVOLTAGEUP TO 50V ·HIGH POSITIONING PRECISION AND HIGH NOISE IMMUNITY DUE TO TRANSFER CHARACTERISTICS WITH NEUTRAL ZONE AND STOP RANGE THRESHOLD ·FAST STOP THROUGH SHORT-CIRCUITING THE MOTOR ·MOTOR STOP STATUS IN CASE OF OPEN INPUT CONDITION ·SUPPLY OVERVOLTAGE PROTECTION FUNCTION FOR Vs MORE THAN 18V, UP TO 50V ·INPUT PROTECTION AGAINST TRANSIENTS ON THE BATTERY LINE AND THE REVERSE BATTERY CONDITION ·THERMAL OVERLOAD PROTECTION ·ESD PROTECTED ACCORDING TO MIL883C
L9907ND Connection Diagram
L9909 General Description
The output current at ROSC pin is mirrored to COSC pin with a proper direction according to its voltage slope.
The triangular wave form at COSC pin, being compared with a threshold, defines the PWMduty cycle at the motor driver outputM+ and M-. The oscillator also supplies the time base for the switch off and switch on delays and the Time Out Counter.
The typical oscillator period is: Tosc = 7.04 x Rosc x Cosc
L9909 Maximum Ratings
Symbol
Parameter
Value
Unit
VCC
DC battery supply voltage
-0.3 to 55
V
VCC_t
Transient battery supply voltage (Figs. 4 and 5)
-0.3 to VCC_CL (*)
V
Vin
Voltage at VCOM and VFB pins
-0.3 to VCC +0.3
V
VROSC
Voltage AT ROSC pin
-0.3 to 7
V
VCOSC
Voltage at COSC pin for VCC >16V
-0.3 to16
V
Voltage at COSC pin for VCC >16V
-0.3 to VCC +0.3
V
ICC
Current at VCC GND, M+ and M-
±1.9
A
ICC_t
Transient Current at VCC GND (figs. 4 and 5)
±4
A
Isig
Current at VFB, VCOM, COSC and ROSC
±10
mA
Pd
Device Power Dissipation
internally limited
W
Tj
Junction Temperature
-40 to 150
°C
Tstg
Storage and Junction Temperature
-55 to 150
°C
VESD
ESD Voltage Level (Human body Model - MIL STD883C)
±2000
V
(*) NOTE: SELF PROTECTING Stressed above those listed under"Absolute Maximum Ratings" may cause permanent damage to the device . This is a stress rating anly and functional operation of the device at any conditionabove those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
L9909 Connection Diagram
L9925 Parameters
Technical/Catalog Information
L9925
Vendor
STMicroelectronics
Category
Integrated Circuits (ICs)
Applications
Stepper Motor Driver
Number of Outputs
2
Voltage - Supply
9 V ~ 16 V
Voltage - Load
-
Current - Output
±1.2A
Operating Temperature
-40°C ~ 150°C
Package / Case

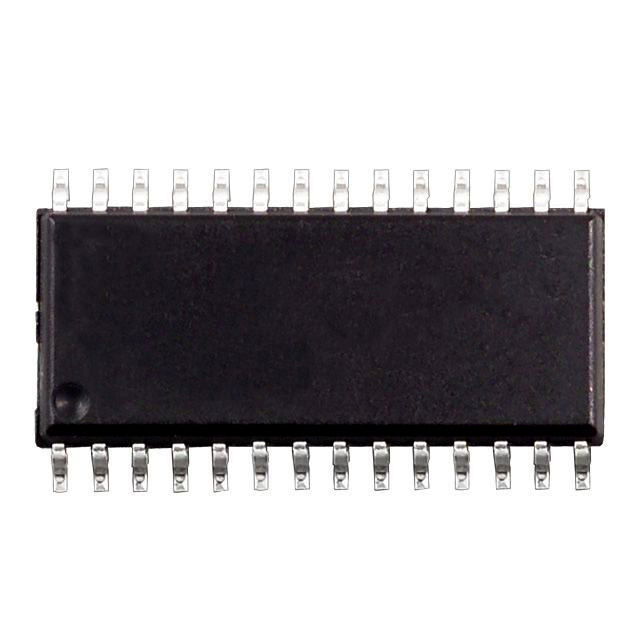

28-SOIC (7.5mm Width)
Packaging
Tube
Lead Free Status
Contains Lead
RoHS Status
RoHS Non-Compliant
Other Names
L9925 L9925 497 3938 5 ND 49739385ND 497-3938-5
L9925 General Description
The L9925 is a dual full bridge driver for stepper motor applications. Realized in BCD (Bipolar, CMOS & DOS) techology, logic circuits, precise linear blocks and power transistors are combined to optimize circuit performance and minimize off chip components.Schmitt triggers are used for all input stages and are fully compatible with 5V CMOS logic levels. When both enable signals are low, the IC is commanded to a low quiescent current state and will draw less than 200mA from the battery.
The charge pump is integrated on chip; no external componentsare required. Full performance is maintaned for 9V <VS <16V. Extended ranges of 6V <<VS <9V and 16V <VS <40V yields full functionally but with relaxed performance. Over temperature protection and ESD protection to all pins ensures relability and reduces system integration failures.
L9925 Maximum Ratings
Absolute Maximum Ratings are those values beyond whih damage to the device may occur. Functional operation under these condition isn't implied. For voltages and currents applied externally to the device:
Symbol
Parameter
Value
Unit
VVSDC
Dc Supply Voltage
-0.3 to 26
V
VVSP
Supply Voltage Pulse (T 400ms) (1)
40
V
IOUT
DC Output Load Current
±1.2
A
IOUT MAX
DC Output Current: for VOUT > VVS +0.3V or VOUT < -0.3V the internal DMOS reverse and/or substrate diode become conductive and the applied current should not exceed the specified limit.
±1.8
A
VIN1,2
DC Input Voltage
-0.3 to 7
V
VEN
Enable Input Voltage
-0.3 to 7
V
Tstg, Tj
Storage and Junction Temperature
-40 to 150
°C
Ptot
Total Power Dissipation (Tpins = 80°C) (Tamb = 70°C no copper area on PCB) (Tamb =70°C8cm2 copper area on PCB)
5 1.23 2
W W W
(1) Device may be overstressed if pulsed simultaneous with short circuit at one or more of the outputs will be present.
L9925 Features
`2 INDEPENDENTLY CONTROLLED H-BRIDGES `RDS,ON <0.9 @Tamb = 25°C, VS = 14V `0.8A DC CURRENT WITHOUT HEAT SINK `LOW QUIESCENT MODE Iq <200A `THEMAL PROTECTION `CROSSCONDUCTION PROTECTION `SUPPLYVOLTAGEUP TO 40V `CMOS COMPATIBLE INPUTS `OUTPUT SHORT-CIRCUIT PROTECTION
