L9904, US $ 1.24-1.61 , STMicroelectronics, L9904 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 00533673 Detail

L9904: Motor / Motion / Ignition Controllers & Drivers Motor Bridge Contlr

L9904 Data Sheet

US $ 1.24~1.61 / Piece | Get Latest Price

Part Number:: L9904
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
0~605
605~1000
1000~2000
2000~5000

Unit Price
$1.61
$1.36
$1.29
$1.24

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

L9903 evaluate
US $1.38 - 1.79 / Piece

Motor / Motion / Ignition Controllers & Drivers Motor Bridge
L9903TR evaluate
US $1.38 - 1.79 / Piece

Motor / Motion / Ignition Controllers & Drivers Motor Bridge
L9904TR evaluate
US $1.24 - 1.61 / Piece

Motor / Motion / Ignition Controllers & Drivers Motor Bridge Contlr

Product Details

Quick Details

Type :	Motor Bridge	Operating Supply Voltage :	40 V
Supply Current :	10 mA	Mounting Style :	SMD/SMT
Package / Case :	SO-20	Packaging :	Tube

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Current : 10 mA
Package / Case : SO-20
Operating Supply Voltage : 40 V
Type : Motor Bridge

Features:

` OPERATING SUPPLY VOLTAGE 8V TO 28V, OVERVOLTAGE MAX. 40V
` OPERATING SUPPLY VOLTAGE 6V WITH IMPLEMENTED STEPUP CONVERTER
` QUIESCENT CURRENT IN STANDBY MODE LESS THAN 50A
` ISO 9141 COMPATIBLE INTERFACE
` CHARGE PUMP FOR DRIVING A POWER MOS AS REVERSE BATTERY PROTECTION
` PWM OPERATION FREQUENCY UP TO 30KHZ
` PROGRAMMABLE CROSS CONDUCTION PROTECTION TIME
` OVERVOLTAGE, UNDERVOLTAGE, SHORT CIRCUIT AND THERMAL PROTECTION
` REAL TIME DIAGNOSTIC

Pinout

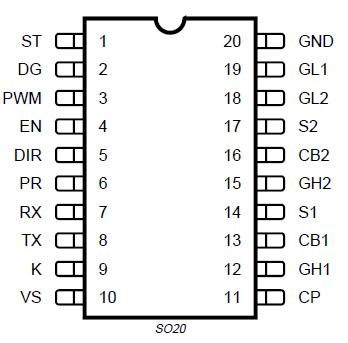

Connection Diagram

Specifications

Symbol	Symbol	Value	Unit
V_{CB1 ,} V_CB2	Bootstrap voltage	-0.3 to 40	V
I_{CB1 ,} I_CB2	Bootstrap current	-100	mA
V_CP	Charge pump voltage	-0.3 to 40	V
I_CP	Charge pump current	-1	mA
V_{DIR ,}V_EN _,V_{PWM ,}V_TX	Logic input voltage	-0.3 to 7	V
I_{DIR ,}I_EN ,I_PWM ,I_TX	Logic input current	±1	mA
V_{DG ,}V_RX	Logic output voltage	-0.3 to 7	V
I_{DG ,}I_RX	Logic output current	-1	mA
V_GH1, V_GH2	Gate driver voltage	-0.3 to V_SX+ 10	V
I_{GH1 ,} I_GH2	Gate driver current	-1	mA
V_{GL1 ,} V_GL2	Gate driver voltage	-0.3 to 10	V
I_{GL1 ,} I_GL2	Gate driver current	-10	mA
V_K	K-line voltage	-20 to VS	V
V_PR	Programming input voltage	-0.3 to 7	V
I_PR	Programming input current	-1	mA
V_{S1 ,} V_S2	Source/drain voltage	-2 to V_VS+ 2	V
I_{S1 ,} I_S2	Source/drain current	-10	mA
V_ST	Output voltage	-0.3 to 40	V
I_ST	Step up output current	-1	mA
V_VSDC	DC supply voltage	-0.3 to 28	V
V_VSP	Pulse supply voltage (T < 500ms)	40	V
I_VS	DC supply current	-100	mA

For externally applied voltages or currents exceeding these limits damage of the device may occur!
All pins of the IC are protected against ESD. The verification is performed according to MIL883C, human body model with R=1.5k, C=100pF and discharge voltage ±2kV, corresponding to a maximum discharge energy of 0.2mJ.

Description

Control circuit L9904 for power MOS bridge driver in automotive applications with ISO 9141bus interface.

Parameters:

Technical/Catalog Information	L9904
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Applications	DC Motor Controller
Number of Outputs	2
Voltage - Supply	8 V ~ 20 V
Voltage - Load	-
Current - Output	-
Operating Temperature	-40°C ~ 150°C
Package / Case	20-SOIC (7.5mm Width)
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L9904 L9904
