IXTA6N50P, IXTA75N10P, IXTA7N60P

Table of contents:
Info of IXTA6N50P
Info of IXTA75N10P
Info of IXTA7N60P

IXTA6N50P, IXTA75N10P, IXTA7N60P Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:TO-263 D/C:TO-263AB

IXTA6N50P, IXTA75N10P, IXTA7N60P Datasheet download

Five Points

Part Number: IXTA7N60P

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: TO-263

D/C: TO-263AB

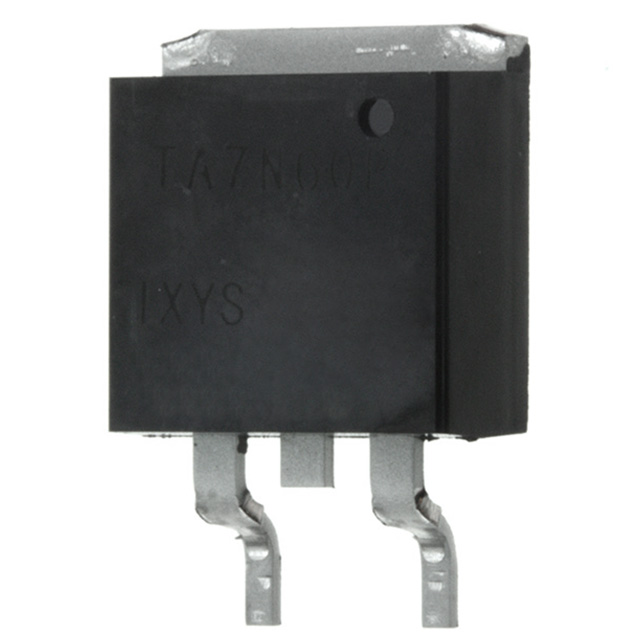

Description: MOSFET N-CH 600V 7A D2-PAK

Price Break

500

Unit Price

.50400

Extended Price

252.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXTA6N50P Parameters

Technical/Catalog Information	IXTA6N50P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	6A
Rds On (Max) @ Id, Vgs	1.1 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	740pF @ 25V
Power - Max	100W
Packaging	Tube
Gate Charge (Qg) @ Vgs	14.6nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTA6N50P IXTA6N50P

IXTA75N10P Parameters

Technical/Catalog Information	IXTA75N10P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25° C	75A
Rds On (Max) @ Id, Vgs	25 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	2250pF @ 25V
Power - Max	360W
Packaging	Tube
Gate Charge (Qg) @ Vgs	74nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTA75N10P IXTA75N10P

IXTA75N10P Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
V_CESV_CGR	T_J = 25 to 150 600 T_J= 25 to 150 ; R_GE = 1 M	100 100	V
V_GES V_GEM	Continuous Transient	±20 ±30	V V
I_D25 I_DM	T_C= 25 T_C= 25, pulse width limited by TJM	75 200	A A A A
I_AR E_AR E_AS	T_C = 25°C T_C = 25°C T_C = 25°C	50 30 1.0	A mJ J
dv/dt	I_S I_DM, di/dt 100 A/µs, V_DD V_DSS, T_J 150°C, RG = 10 Ω	10	V/ns
P_D	T_C = 25	300	W
T_J T_JM T_stg		-55 ... +150 150 -55 ... +150	°C °C °C
T_L	1.6 mm (0.062 in.) from case for 10 s Maximum tab temperature for soldering TO-263 package for 10s	300 260	°C °C
M_d	Mounting torque, TO-247	1.13/10	Nm/lb.in.
Weight	TO-3P TO-220 TO-263	5.5 4 3	g g g

IXTA75N10P Features

·International standard packages
·Unclamped Inductive Switching (UIS) rated
·Low package inductance
- easy to drive and to protect

IXTA75N10P Typical Application

·Easy to mount
·Space savings
·High power density

IXTA7N60P Parameters

Technical/Catalog Information	IXTA7N60P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25° C	7A
Rds On (Max) @ Id, Vgs	1.1 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	1080pF @ 25V
Power - Max	150W
Packaging	Tube
Gate Charge (Qg) @ Vgs	20nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTA7N60P IXTA7N60P
