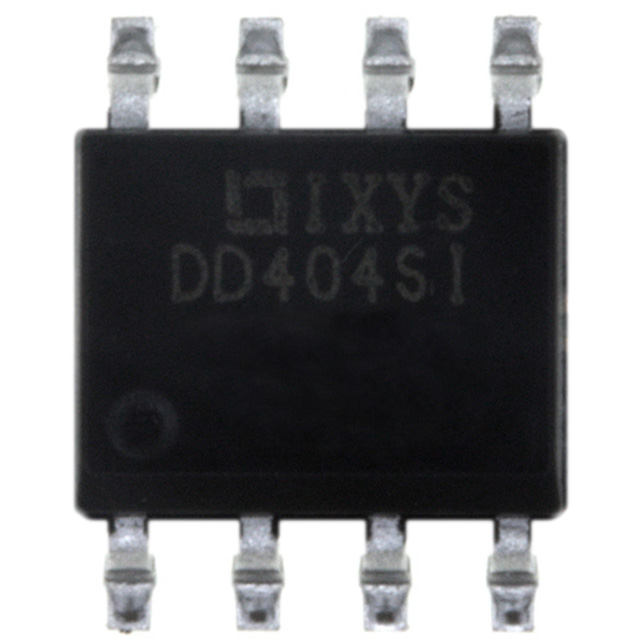

The IXDD404 is comprised of two 4 Amp CMOS high speed MOSFET drivers. Each output can source and sink 4 A of peak current while producing voltage rise and fall times of less than 15ns to drive the latest IXYS MOSFETS & IGBT's. The input of the driver is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. Designed with small internal delays, cross conduction/current shootthrough is virtually eliminated in the IXDD404. Improved speed and drive capabilities are further enhanced by very low, matched rise and fall times.
Additionally, each driver in the IXDD404 incorporates a unique ability to disable the output under fault conditions. When a logical low is forced into the Enable input of a driver, both of it's final output stage MOSFETs (NMOS and PMOS) are turned off. As a result, the respective output of the IXDD404 enters a tristate mode and achieves a Soft Turn-Off of the MOSFET/ IGBT when a short circuit is detected. This helps prevent damage that could occur to the MOSFET/IGBT if it were to be switched off abruptly due to a dv/dt over-voltage transient.
The IXDD404 is available in the standard 8 pin P-DIP (PI), SOP-8 (SI -with metal tab), SOP-8 (SIA -without metal tab) and SOP-16 (SI-16) packages.
IXDD404SI Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . 25 V All Other Pins . . . . .-0.3 V to VCC + 0.3 V Junction Temperature . . . . . . . . . .150 Storage Temperature . . .-65 to 150 Lead Temperature (10 sec) . . . . . 300
IXDD404SI Features
• Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes • Latch-Up Protected • High Peak Output Current: 4A Peak • Wide Operating Range: 4.5V to 25V • Ability to Disable Output under Faults • High Capacitive Load Drive Capability: 1800pF in <15ns • Matched Rise And Fall Times • Low Propagation Delay Time • Low Output Impedance • Low Supply Current • Two identical drivers in single chip
IXDD404SI Typical Application
• Driving MOSFETs and IGBTs • Limiting di/dt under Short Circuit • Motor Controls • Line Drivers • Pulse Generators • Local Power ON/OFF Switch • Switch Mode Power Supplies (SMPS) • DC to DC Converters • Pulse Transformer Driver • Class D Switching Amplifiers
IXDD404SI Connection Diagram
IXDD408PI Parameters
Technical/Catalog Information
IXDD408PI
Vendor
IXYS
Category
Integrated Circuits (ICs)
Configuration
Low-Side
Voltage - Supply
4.5 V ~ 25 V
Current - Peak
8A
Delay Time
38ns
Package / Case
8-DIP
Packaging
Tube
Number of Outputs
1
Input Type
Non-Inverting
Number of Configurations
1
Operating Temperature
-40°C ~ 85°C
High Side Voltage - Max (Bootstrap)
-
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
IXDD408PI IXDD408PI
IXDD408PI General Description
The IXDD408 is a high speed high current gate driver specifically designed to drive the largest MOSFETs and IGBTs to their minimum switching time and maximum practical frequency limits. The IXDD480 can source and sink 8A of peak current while producing voltage rise and fall times of less than 30ns. The input of the driver is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. Designed with small internal delays, cross conduction/current shootthrough is virtually eliminated in the IXDD408. Its features and wide safety margin in operating voltage and power make the IXDD408 unmatched in performance and value.
The IXDD408 incorporates a unique ability to disable the output under fault conditions. When a logical low is forced into the Enable input, both final output stage MOSFETs (NMOS and PMOS) are turned off. As a result, the output of the IXDD408 enters a tristate mode and achieves a Soft Turn-Off of the MOSFET/IGBT when a short circuit is detected. This helps prevent damage that could occur to the MOSFET/IGBT if it were to be switched off abruptly due to a dv/dt over-voltage transient.
The IXDD408 is available in the standard 8-pin P-DIP (PI), SOP-8 (SI), 5-pin TO-220 (CI) and in the TO-263 (YI) surface-mount package.
• Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes. • Latch Up Protected • High Peak Output Current: 8A Peak • Operates from 4.5V to 25V • Ability to Disable Output under Faults • High Capacitive Load Drive Capability: 2500pF in <15ns • Matched Rise And Fall Times • Low Propagation Delay Time • Low Output Impedance • Low Supply Current
IXDD408PI Typical Application
• Driving MOSFETs and IGBTs • Limiting di/dt under Short Circuit • Motor Controls • Line Drivers • Pulse Generators • Local Power ON/OFF Switch • Switch Mode Power Supplies (SMPS) • DC to DC Converters • Pulse Transformer Driver • Class D Switching Amplifiers
