IXDD414CI

Supply Voltage - Max :
Product :
Maximum Operating Temperature : + 125 C
Supply Voltage - Min : 4.5 V
Packaging : Tube
Mounting Style : Through Hole
Supply Current : 3 mA
Package / Case : TO-220-5
Fall Time : 26 ns
Type : Low Side Gate Driver
Rise Time : 29 ns
Maximum Power Dissipation : 12500 mW


Features:

• Built using the advantages and compatibility of CMOS and IXYS HDMOS^TM processes.
• Latch-Up Protected
• High Peak Output Current: 14A Peak
• Wide Operating Range: 4.5V to 25V
• Ability to Disable Output under Faults
• High Capacitive Load Drive Capability: 15nF in <30ns
• Matched Rise And Fall Times
• Low Propagation Delay Time
• Low Output Impedance
• Low Supply Current


Application

• Driving MOSFETs and IGBTs
• Limiting di/dt under Short Circuit
• Motor Controls
• Line Drivers
• Pulse Generators
• Local Power ON/OFF Switch
• Switch Mode Power Supplies (SMPS)
• DC to DC Converters
• Pulse Transformer Driver
• Class D Switching Amplifiers

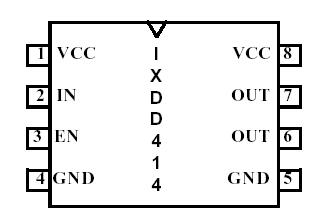

Pinout




Specifications

Parameter	Value
Supply Voltage	25 V
All Other Pins	-0.3V to VCC + 0.3V
Power Dissipation, TAMBIENT 25 8 Pin PDIP (PI) 8 Pin SOIC (SI) TO220 (CI), TO263 (YI)	975mW 12W
Derating Factors (to Ambient) 8 Pin PDIP (PI) 8 Pin SOIC (SI) TO220 (CI), TO263 (YI)	7.6mW/ 0.1W/
Storage Temperature	-65 to 150
Soldering Lead Temperature (10 seconds maximum)	300

Description

The IXDD414 is a high speed high current gate driver specifically designed to drive the largest MOSFETs and IGBTs to their minimum switching time and maximum practical frequency limits. The IXDD414 can source and sink 14A of peak current while producing voltage rise and fall times of less than 30ns. The input of the driver is compatible with TTL or CMOS and is fully immune to mlatch up over the entire operating range. Designed with small internal delays, cross conduction/current shootthrough is virtually eliminated in the IXDD414. Its features and wide safety margin in operating voltage and power make the IXDD414 unmatched in performance and value.

The IXDD414 incorporates a unique ability to disable the output under fault conditions. When a logical low is forced into the Enable input, both final output stage MOSFETs (NMOS and PMOS) are turned off. As a result, the output of the IXDD414 enters a tristate mode and achieves a Soft Turn-Off of the MOSFET/IGBT when a short circuit is detected. This helps prevent damage that could occur to the MOSFET/IGBT if it were to be switched off abruptly due to a dv/dt over-voltage transient.

The IXDD414 is available in the standard 8-pin P-DIP (PI), 5-pin TO-220 (CI) and in the TO-263 (YI) surface-mount package.

Parameters:

Technical/Catalog Information	IXDD414CI
Vendor	IXYS
Category	Integrated Circuits (ICs)
Configuration	Low-Side
Voltage - Supply	4.5 V ~ 35 V
Current - Peak	14A
Delay Time	30ns
Package / Case	TO-220-5 (Straight Leads)
Packaging	Tube
Number of Outputs	1
Input Type	Non-Inverting
Number of Configurations	1
Operating Temperature	-55°C ~ 125°C
High Side Voltage - Max (Bootstrap)	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXDD414CI IXDD414CI
