IXDD404SI-16

Power Driver ICs 40V 4A

product image

IXDD404SI-16 Picture
SeekIC No. : 00540444 Detail

IXDD404SI-16: Power Driver ICs 40V 4A

floor Price/Ceiling Price

Part Number:
IXDD404SI-16
Mfg:
Ixys
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Low Side Gate Driver Rise Time : 18 ns
Fall Time : 17 ns Supply Voltage - Min : 4.5 V
Supply Current : 3 mA Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT Package / Case : SOP-CT-16
Packaging : Tube

Description

Product :
Supply Voltage - Max :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 125 C
Supply Voltage - Min : 4.5 V
Fall Time : 17 ns
Packaging : Tube
Rise Time : 18 ns
Supply Current : 3 mA
Type : Low Side Gate Driver
Package / Case : SOP-CT-16


Features:

• Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes
• Latch-Up Protected
• High Peak Output Current: 4A Peak
• Wide Operating Range: 4.5V to 25V
• Ability to Disable Output under Faults
• High Capacitive Load Drive Capability: 1800pF in <15ns
• Matched Rise And Fall Times
• Low Propagation Delay Time
• Low Output Impedance
• Low Supply Current
• Two identical drivers in single chip



Application

• Driving MOSFETs and IGBTs
• Limiting di/dt under Short Circuit
• Motor Controls
• Line Drivers
• Pulse Generators
• Local Power ON/OFF Switch
• Switch Mode Power Supplies (SMPS)
• DC to DC Converters
• Pulse Transformer Driver
• Class D Switching Amplifiers



Pinout

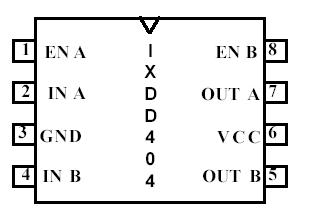

  Connection Diagram


Specifications

Supply Voltage  . . . . . . . . . . . . . . . . 25 V
All Other Pins  . . . . .-0.3 V to VCC + 0.3 V
Junction Temperature  . . . . . . . . . .150
Storage Temperature  . . .-65 to 150
Lead Temperature (10 sec)  . . . . .  300



Description

The IXDD404 is comprised of two 4 Amp CMOS high speed MOSFET drivers. Each output can source and sink 4 A of peak current while producing voltage rise and fall times of less than 15ns to drive the latest IXYS MOSFETS & IGBT's. The input of the driver is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. Designed with small internal delays, cross conduction/current shootthrough is virtually eliminated in the IXDD404. Improved speed and drive capabilities are further enhanced by very low, matched rise and fall times.

Additionally, each driver in the IXDD404 incorporates a unique ability to disable the output under fault conditions. When a logical low is forced into the Enable input of a driver, both of it's final output stage MOSFETs (NMOS and PMOS) are turned off. As a result, the respective output of the IXDD404 enters a tristate mode and achieves a Soft Turn-Off of the MOSFET/ IGBT when a short circuit is detected. This helps prevent damage that could occur to the MOSFET/IGBT if it were to be switched off abruptly due to a dv/dt over-voltage transient.

The IXDD404 is available in the standard 8 pin P-DIP (PI), SOP-8 (SI -with metal tab), SOP-8 (SIA -without metal tab) and SOP-16 (SI-16) packages.




Parameters:

Technical/Catalog InformationIXDD404SI-16
VendorIXYS
CategoryIntegrated Circuits (ICs)
ConfigurationLow-Side
Voltage - Supply4.5 V ~ 35 V
Current - Peak4A
Delay Time36ns
Package / Case16-SOIC
PackagingTube
Number of Outputs2
Input TypeNon-Inverting
Number of Configurations2
Operating Temperature-55°C ~ 125°C
High Side Voltage - Max (Bootstrap)-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IXDD404SI 16
IXDD404SI16
