FSF10A60B, FSF9150D1, FSFR2100

Table of contents:
Info of FSF10A60B
Info of FSF9150D1
Info of FSFR2100

FSF10A60B, FSF9150D1, FSFR2100 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:TO-220 D/C:08+

FSF10A60B, FSF9150D1, FSFR2100 Datasheet download

Five Points

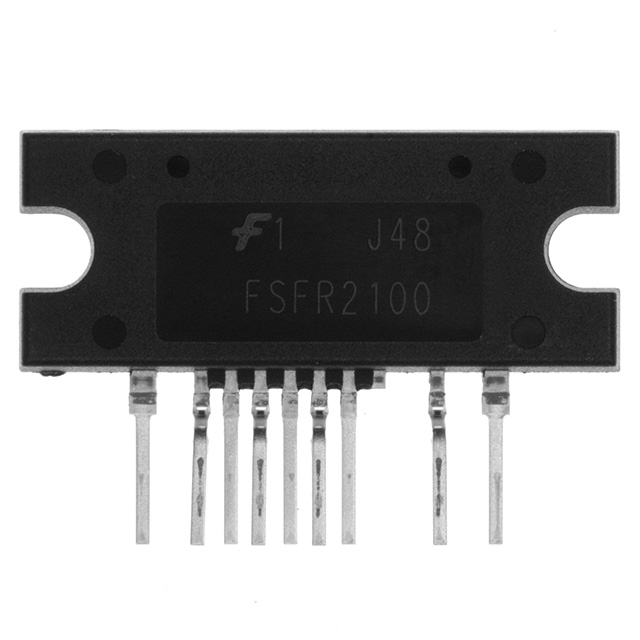

Part Number: FSFR2100

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: TO-220

D/C: 08+

Description: IC PWR SWITCH FPS RES CONV 9SIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FSF10A60B Maximum Ratings

Rating	Symbol	FSF05A20B			Unit
Repetitive Peak Reverse Voltage	V_RRM	600			V
Average Rectified Output Current	I_O	10	Tc=74	50 Hz Half Sine Wave Resistive Load	A
RMS Forward Current	I_F(RMS)	15.7			A
Surge Forward Current	I_FSM	120	50 Hz Half Sine Wave,1cycle Non-repetitive		A
Operating JunctionTemperature Range	Tjw	- 40 to + 150
Storage Temperature Range	Tstg	- 40 to + 150
Mounting torque		0.5	Recommended value		N•m

FSF10A60B Features

` Fully Molded Isolation Case
` Ultra Fast Recovery
` Low Forward Voltage Drop
` Low Power Loss, High Efficiency
` High Surge Capability
` 200 Volts thru 600 Volts Types Availab

FSFR2100 Parameters

Technical/Catalog Information	FSFR2100
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Packaging	Tube
Package / Case	9-SIP
Power (Watts)	12W
Voltage - Input	350 ~ 400 V
Voltage - Output	650V
Frequency Range	94 ~ 106kHz
Operating Temperature	-40°C ~ 130°C
Output Isolation	Isolated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSFR2100 FSFR2100
