MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:N/A D/C:09+
FGP30N6S2D, FGP40N6S2, FGP7N60RUFD Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: N/A
D/C: 09+
Description: IGBT N-CH SMPS 600V 75A TO220AB
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FGP30N6S2D
File Size: 288422 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FGP40N6S2
File Size: 180574 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FGP7N60RUFD
File Size: 885933 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
The FGH30N6S2D, FGP30N6S2D, and FGB30N6S2D are Low Gate Charge, Low Plateau Voltage SMPS II IGBTs combining the fast switching speed of the SMPS IGBTs along with lower gate charge and plateau voltage and ava-anche capability (UIS). These LGC devices shorten delay imes, and reduce the power requirement of the gate drive.
These devices are ideally suited for high voltage switched mode power supply applications where low conduction oss, fast switching times and UIS capability are essential.SMPS II LGC devices have been specially designed for:
| Symbol | Parameter | Ratings | Units |
| BVCES | Collector to Emitter Breakdown Voltage | 600 | V |
| IC25 | Collector Current Continuous, TC = 25°C | 45 | A |
| IC110 | Collector Current Continuous, TC = 110°C | 20 | A |
| ICM | Collector Current Pulsed (Note 1) | 108 | A |
| VGES | Gate to Emitter Voltage Continuous | ±20 | V |
| VGEM | Gate to Emitter Voltage Pulsed | ±30 | V |
| SSOA | Switching Safe Operating Area at TJ = 150°C, Figure 2 | 60A at 600V | |
| EAS | Pulsed Avalanche Energy, ICE = 12A, L = 2mH, VDD = 50V | 150 | mJ |
| PD | Power Dissipation Total TC = 25°C | 167 | W |
| Power Dissipation Derating TC > 25°C | 1.33 | W/°C | |
| TJ | Operating Junction Temperature Range | -55 to 150 | °C |
| TSTG | Storage Junction Temperature Range | -55 to 150 | °C |
| Technical/Catalog Information | FGP40N6S2 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Input Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 75A |
| Vce(on) (Max) @ Vge, Ic | - |
| Power - Max | - |
| Mounting Type | Through Hole |

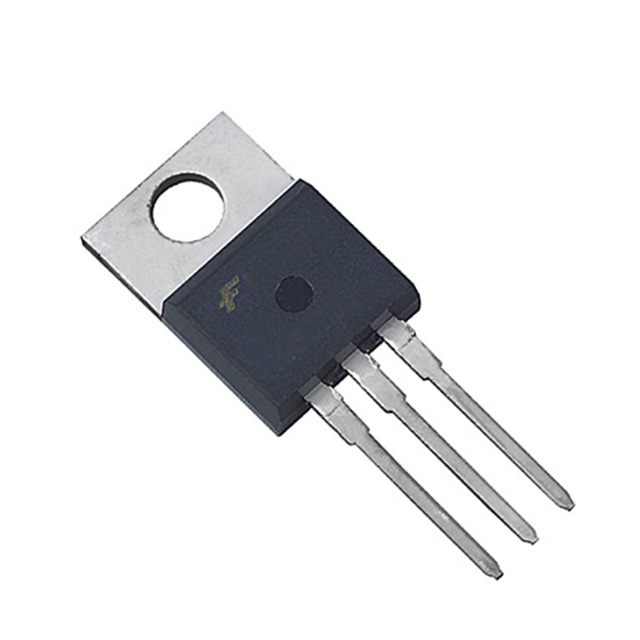

| Package / Case | TO-220AB |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FGP40N6S2 FGP40N6S2 |
