FDA2712, FDA28N50, FDA28N50F

Table of contents:
Info of FDA2712
Info of FDA28N50
Info of FDA28N50F

FDA2712, FDA28N50, FDA28N50F Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-3PN D/C:2010+

FDA2712, FDA28N50, FDA28N50F Datasheet download

Five Points

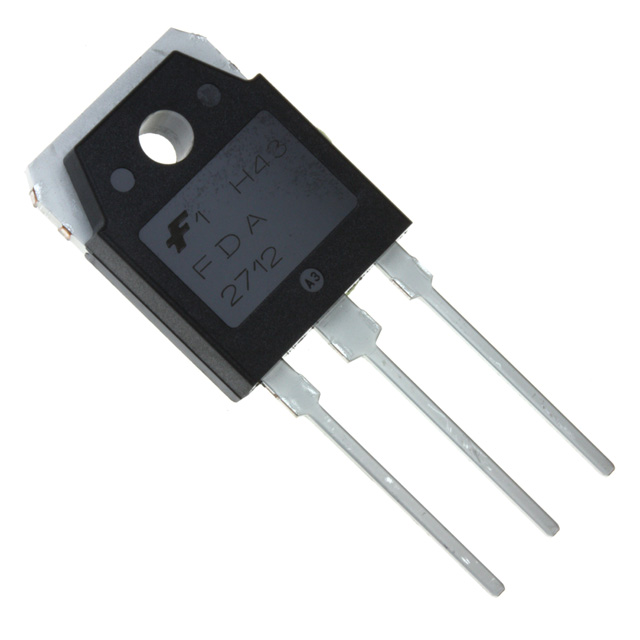

Part Number: FDA2712

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: TO-3PN

D/C: 2010+

Description: MOSFET N-CH 500V TO-3PN

Price Break

1
10
100
1000

Unit Price

5.46000
4.36800
3.68550
3.41250

Extended Price

5.46
43.68
368.55
3412.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDA2712 Parameters

Technical/Catalog Information	FDA2712
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25° C	64A
Rds On (Max) @ Id, Vgs	34 mOhm @ 40A, 10V
Input Capacitance (Ciss) @ Vds	10175pF @ 25V
Power - Max	357W
Packaging	Tube
Gate Charge (Qg) @ Vgs	129nC @ 10V
Package / Case	TO-3PN
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDA2712 FDA2712

FDA28N50 Parameters

Technical/Catalog Information	FDA28N50
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	28A
Rds On (Max) @ Id, Vgs	155 mOhm @ 14A, 10V
Input Capacitance (Ciss) @ Vds	5140pF @ 25V
Power - Max	310W
Packaging	Tube
Gate Charge (Qg) @ Vgs	105nC @ 10V
Package / Case	TO-3PN
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDA28N50 FDA28N50

FDA28N50F Parameters

Technical/Catalog Information	FDA28N50F
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	28A
Rds On (Max) @ Id, Vgs	175 mOhm @ 14A, 10V
Input Capacitance (Ciss) @ Vds	5387pF @ 25V
Power - Max	310W
Packaging	Tube
Gate Charge (Qg) @ Vgs	105nC @ 10V
Package / Case	TO-3PN
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDA28N50F FDA28N50F

FDA28N50F General Description

These N-Channel enhancement mode power field effecttransistors are produced using Failchild?s proprietary, planarstripe, DMOS technology.

This advance technology has been especially tailored tominimize on-state resistance, provide superior switchingperformance, and withstand high energy pulse in the avalancheand commutation mode. These device are well suited for highefficient switched mode power supplies and active power factorcorrection.

FDA28N50F Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDA28N50F	Full Production	RoHS Compliant	$5.46	TO-3PN	3	RAIL	N/A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &E&3 (3-Digit Date Code) Line 2: FDA Line 3: 28N50F

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDA28N50F is available. Click here for more information .
