FDA24N40F, FDA24N50, FDA24N50F

Table of contents:
Info of FDA24N40F
Info of FDA24N50
Info of FDA24N50F

FDA24N40F, FDA24N50, FDA24N50F Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-3PN D/C:2010+

FDA24N40F, FDA24N50, FDA24N50F Datasheet download

Five Points

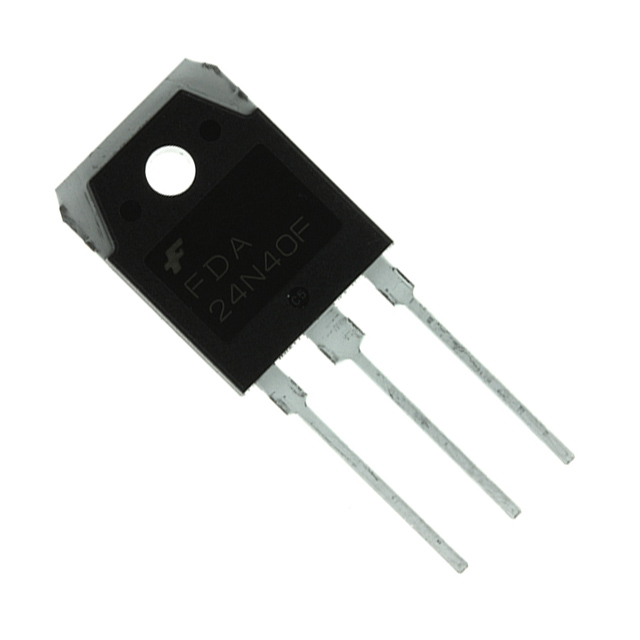

Part Number: FDA24N40F

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: TO-3PN

D/C: 2010+

Description: MOSFET N-CH 500V 24A TO-3

Price Break

1
10
100
250
500
1000

Unit Price

2.45000
1.96000
1.47000
1.37200
1.32300
1.27400

Extended Price

2.45
19.60
147.00
343.00
661.50
1274.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDA24N40F Parameters

Technical/Catalog Information	FDA24N40F
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	400V
Current - Continuous Drain (Id) @ 25° C	23A
Rds On (Max) @ Id, Vgs	190 mOhm @ 11.5A, 10V
Input Capacitance (Ciss) @ Vds	3030pF @ 25V
Power - Max	235W
Packaging	Tube
Gate Charge (Qg) @ Vgs	60nC @ 10V
Package / Case	TO-3PN
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDA24N40F FDA24N40F

FDA24N50 Parameters

Technical/Catalog Information	FDA24N50
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	24A
Rds On (Max) @ Id, Vgs	190 mOhm @ 12A, 10V
Input Capacitance (Ciss) @ Vds	4150pF @ 25V
Power - Max	270W
Packaging	Tube
Gate Charge (Qg) @ Vgs	85nC @ 10V
Package / Case	TO-3PN
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDA24N50 FDA24N50

FDA24N50 General Description

These N-Channel enhancement mode power field effect transistorsare produced using Fairchild?s proprietary, planar stripe,DMOS technology.

This advance technology has been especially tailored to minimizeon-state resistance, provide superior switching performance,and withstand high energy pulse in the avalanche andcommutation mode. These devices are well suited for high efficientswitching mode power supplies and active power factorcorrection.

FDA24N50 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDA24N50	Full Production	RoHS Compliant	$3.26	TO-3PN	3	RAIL	N/A	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &E&3 (3-Digit Date Code) Line 2: FDA Line 3: 24N50

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDA24N50 is available. Click here for more information .

FDA24N50F Parameters

Technical/Catalog Information	FDA24N50F
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	24A
Rds On (Max) @ Id, Vgs	200 mOhm @ 12A, 10V
Input Capacitance (Ciss) @ Vds	4310pF @ 25V
Power - Max	270W
Packaging	Tube
Gate Charge (Qg) @ Vgs	85nC @ 10V
Package / Case	TO-3PN
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDA24N50F FDA24N50F
