2STA1943, 2STB095PP, 2STB118

Table of contents:
Info of 2STA1943
Info of 2STB095PP
Info of 2STB118

2STA1943, 2STB095PP, 2STB118 Selling Leads, Datasheet

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:1,050 D/C:08+

2STA1943, 2STB095PP, 2STB118 Datasheet download

Five Points

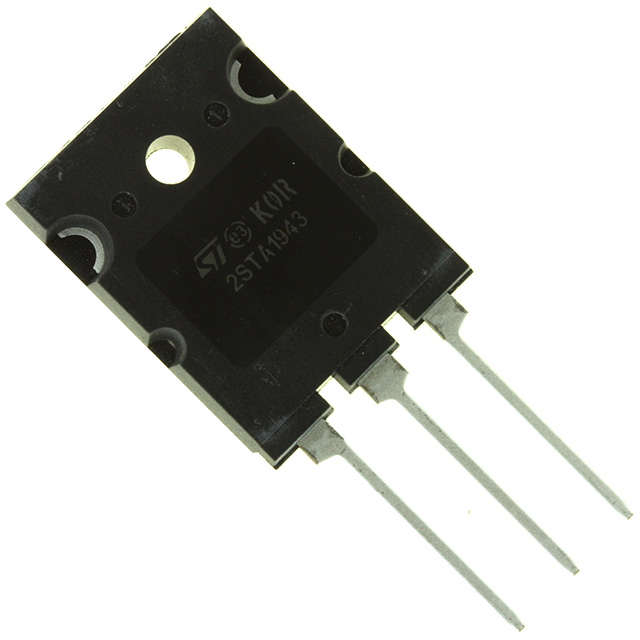

Part Number: 2STA1943

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: 1,050

D/C: 08+

Description: TRANS PNP HP BIPO 230V TO-264

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

2STA1943 Parameters

Technical/Catalog Information	2STA1943
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	230V
Current - Collector (Ic) (Max)	15A
Power - Max	150W
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 1A, 5V
Vce Saturation (Max) @ Ib, Ic	3V @ 800mA, 8A
Frequency - Transition	30MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Through Hole
Package / Case	TO-264
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2STA1943 2STA1943 497 7055 5 ND 49770555ND 497-7055-5

2STA1943 General Description

This device is a NPN transistor manufactured using new BiT-LA (Bipolar Transistor for linear amplifier) technology. The resulting transistor shows good gain linearity behaviour.

2STA1943 Maximum Ratings

SYMBOL	PARAMETER	VALUE	UNIT
V_CBO	Collector-base voltage (I_E = 0)	-230	V
V_CEO	Collector-emitter voltage(I_B = 0)	-230	V
V_EBO	Emitter-base voltage(I_C = 0)	-5	V
I_C	Collector current	-15	A
I_CM	Collector peak current	-30	A
P_tot	Total dissipation at T_C= 25	150	W
T_stg	Storage temperature	-55 to 150
T_J	Operating junction temperature	150

2STA1943 Features

· High breakdown voltage V_CEO > -230V
· Complementary to 2STC5200
· Fast-switching speed
· Typical f_T = 30 MHz

2STA1943 Typical Application

· Audio power amplifier
