LM6171 voltage feedback amplifier and its pin main characteristics

Published:2013/1/9 0:31:00 Author:Ecco | Keyword: voltage feedback amplifier , pin main characteristics

LM6171 voltage feedback amplifier and its pin main characteristics

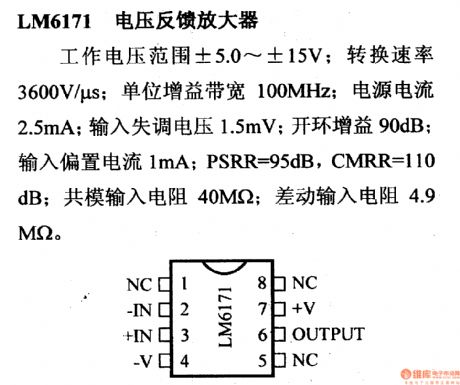

Operating voltage range is ± 5.0 to ± 15V; conversion rate is 3600V/μs; unity gain bandwidth is 100MHz; supply current is 2.5mA; input offset voltage is 1.5mV; open loop gain is 90dB; input bias current is 1mA; PSRR = 95dB, CMRR, = 110dB; common mode input resistance is 40M; differential input resistance is 4.9MΩ. (View)

View full Circuit Diagram | Comments | Reading(826)

Door Knob Touch Alarm Circuit

Published:2013/1/9 1:42:00 Author:muriel | Keyword: Door Knob , Touch Alarm Circuit

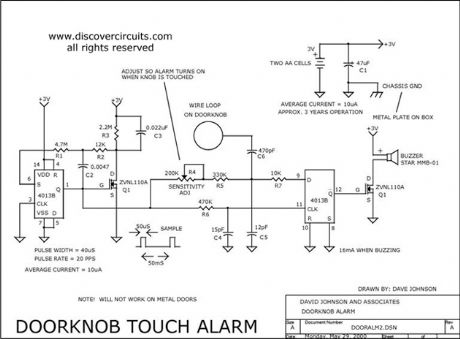

Door Knob Touch Alarm Circuit
(View)

View full Circuit Diagram | Comments | Reading(1625)

Double low-drift JFET input op amp and its pin main characteristic

Published:2013/1/9 0:23:00 Author:Ecco | Keyword: Double, low-drift, JFET input , op amp , pin main characteristic

Double low-drift JFET input op amp and its pin main characteristic

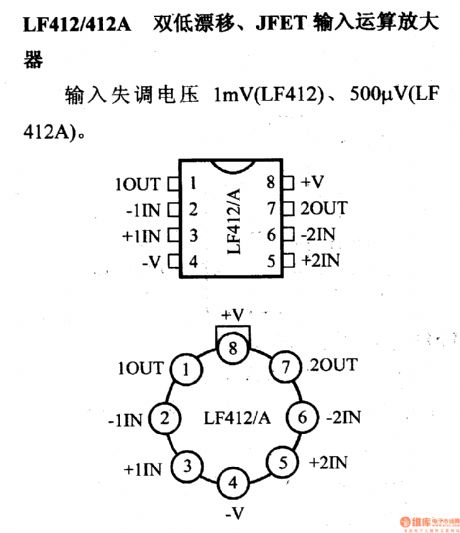

The input offset voltage is 1mV(LF412), 500μV(LF412A). (View)

View full Circuit Diagram | Comments | Reading(689)

The circuit diagram of level shift

Published:2013/1/9 0:20:00 Author:Ecco | Keyword: level shift

The circuit diagram of level shift is shown as the figure. (View)

View full Circuit Diagram | Comments | Reading(661)

Dark Activated 12v Power Supply Switch

Published:2013/1/9 1:41:00 Author:muriel | Keyword: Dark Activated , 12v , Power Supply Switch

Dark Activated 12v Power Supply Switch
(View)

View full Circuit Diagram | Comments | Reading(760)

OP-16 JFET input op amp and its pin main characteristics

Published:2013/1/8 1:10:00 Author:Ecco | Keyword: JFET , input op amp , pin main characteristics

OP-16 JFET input op amp and its pin main characteristics
200μV input offset voltage; 2μV / ℃ temperature drift; 15pA bias current; gain-bandwidth product GB= 8MHz; 25V/μs conversion rate; 15nV / √ ¯ Hz ( 1kHz) noise; 4mA consumption current; ± 22V power supply (16E / F ), ± 18V power supply (16G); ± 40V (16E / F) , ± 30V (16G )differential-mode input voltage. (View)

View full Circuit Diagram | Comments | Reading(911)

OP-20 high-precision operational amplifier and its pin main characteristics

Published:2013/1/8 1:16:00 Author:Ecco | Keyword: high-precision, operational amplifier, pin main characteristics

OP-20 high-precision operational amplifier and its pin main characteristics
55μV input offset voltage; 750nV / ℃ temperature drift; 12nA bias current; Gain Bandwidth Product GB = 100kHz; 50mV/μs conversion rate; 55mA current consumption; power supply is ± 19V, and it can use a single -supply operation; ± 30V differential-mode input voltage; open loop gain is high; power consumption is 500mW. (View)

View full Circuit Diagram | Comments | Reading(577)

OP-21 high-precision operational amplifier and its pin main characteristics

Published:2013/1/8 1:20:00 Author:Ecco | Keyword: high-precision , operational amplifier , pin main characteristics

OP-21 high-precision operational amplifier and its pin main characteristics

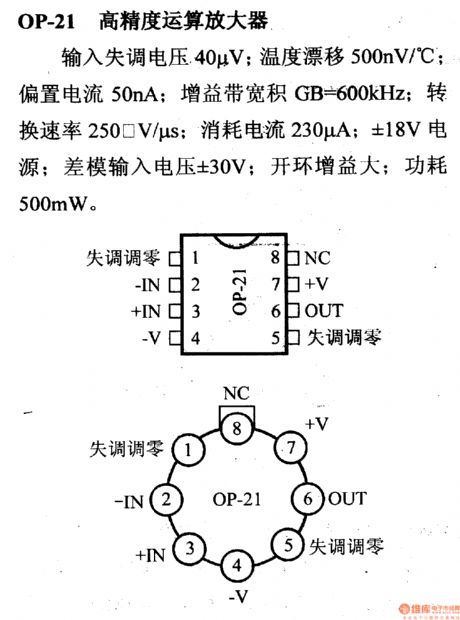

The input offset voltage is 40μV; temperature drift is 500nV / ℃; bias current is 50nA; Gain Bandwidth Product GB = 600kHz; Current consumption is 230μA; power supply is ± 18V; differential-mode input voltage is ± 30V; open-loop gain is high, the power consumption is 500mW. (View)

View full Circuit Diagram | Comments | Reading(613)

OP-22 programmable op amp and its pin main characteristics

Published:2013/1/8 0:58:00 Author:Ecco | Keyword: programmable op amp , pin main characteristics

OP-22 programmable op amp and its pin main characteristics

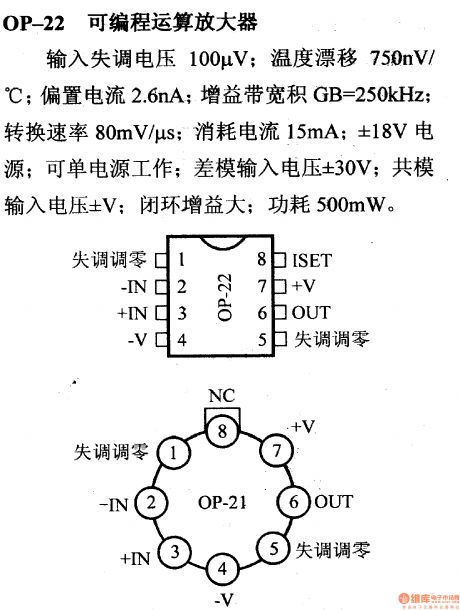

Input offset voltage is 100μV; temperature drift is 750nV / ℃; bias current is 2.6nA; Gain Bandwidth Product GB = 250kHz; conversion rate is 80mV/μs; Current consumption is 15mA ; ± 18V power supply; it can be a single -supply operation; differential-mode input voltage is ± 30V; the common-mode input voltage is ± V; closed-loop gain is high; power consumption is 500mW. (View)

View full Circuit Diagram | Comments | Reading(706)

OP-27 ultra-low noise and high - precision operational amplifier and its pin main characteristics

Published:2013/1/8 0:53:00 Author:Ecco | Keyword: ultra-low noise , high - precision , operational amplifier , pin main characteristics

OP-27 ultra-low noise and high - precision operational amplifier and its pin main characteristics

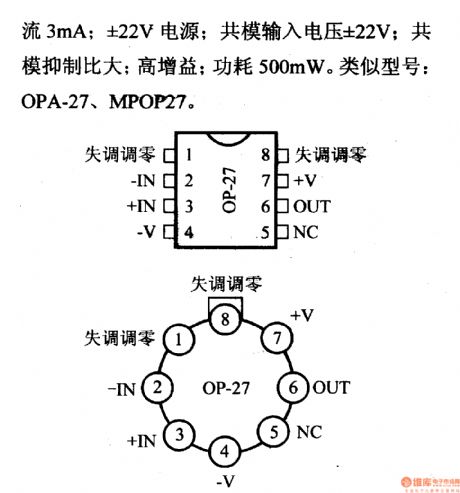

Input offset voltage is 10 μV ; the temperature drift is 200nV / ℃; bias current is 10nA; gain-bandwidth product GB= 8MHz ; conversion rate is 2.8V/μs; noise is 3mV / √ ˉ Hz (1kHz); Current consumption is 3mA ; ± 22V power supply; common mode input voltage is ± 22V; CMRR is high; high gain; power consumption is 500mW. The similar models: OPA- 27 , MPOP27. (View)
