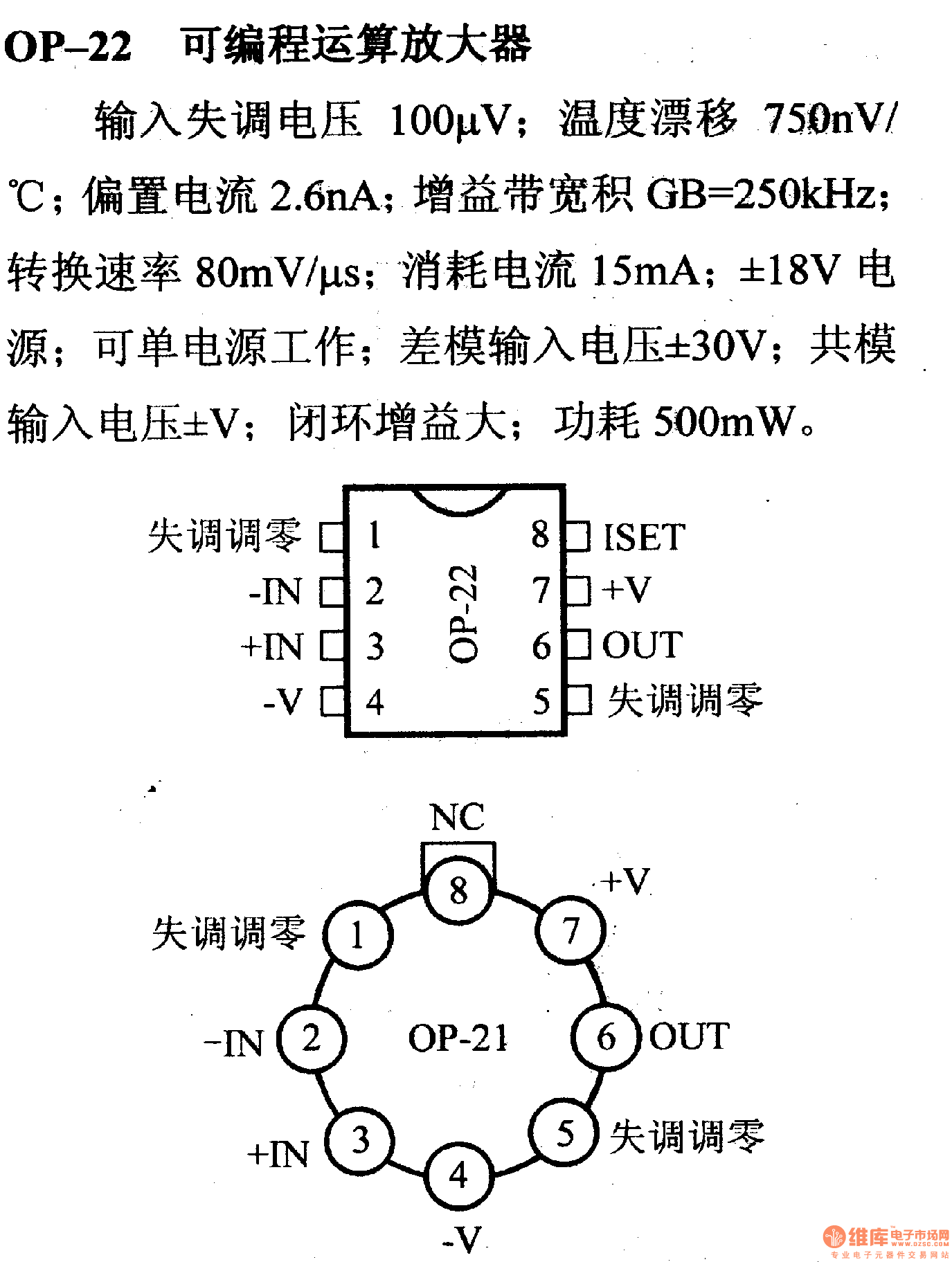

OP-22 programmable op amp and its pin main characteristics

Published:2013/1/8 0:58:00 Author:Ecco | Keyword: programmable op amp , pin main characteristics | From:SeekIC

Input offset voltage is 100μV; temperature drift is 750nV / ℃; bias current is 2.6nA; Gain Bandwidth Product GB = 250kHz; conversion rate is 80mV/μs; Current consumption is 15mA ; ± 18V power supply; it can be a single -supply operation; differential-mode input voltage is ± 30V; the common-mode input voltage is ± V; closed-loop gain is high; power consumption is 500mW.
