MFG:Nuvoton Technology Corporation of America Category:Programmers, Development Systems Package Cooled:500 D/C:08+/09+
W681512WG, W682310, W682310DK Datasheet download
Category: Programmers, Development Systems
MFG: Nuvoton Technology Corporation of America
Package Cooled: 500
D/C: 08+/09+
Description: KIT DEVELOPMENT FOR W682310
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: W681512WG
File Size: 312487 KB
Manufacturer: Winbond
Download : Click here to Download
PDF/DataSheet Download
Datasheet: W682310
File Size: 1342192 KB
Manufacturer: WINBOND [Winbond]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: W6810
File Size: 415488 KB
Manufacturer: WINBOND [Winbond]
Download : Click here to Download
The W682510 and W682310 are general-purpose dual channel PCM CODECs with pin-selectable -Law or A-Law companding. The device is compliant with the ITU G.712 specification. It operates from a single power supply (+5V for the W682510, +3V for the W682310) and is available in 20-pin PDIP (W682510 only), SSOP, and 24-pin SOP package options. Functions performed include digitization and reconstruction of voice signals, and band limiting and smoothing filters required for PCM systems. The filters are compliant with ITU G.712 specification. The W682510 and W682310 performance is specified over the industrial temperature range of –40°C to +85°C.
The W682510 includes an on-chip precision voltage reference and receive output buffer amplifiers, capable of driving 600 loads (line transformers.) The analog section is fully differential, reducing noise and improving the power supply rejection ratio. The data transfer protocol supports either parallel or serial synchronous communications for PCM applications. The W682510 and W682310 have a build in PLL that eliminates the need for a master clock and automatically determines the division ratio for the required internal clock.
|
Condition |
Value |
| Junction temperature | 1500C |
| Storage temperature range | -650C to +1500C |
| Voltage Applied to any pin | (VSS - 0.3V) to (VDD + 0.3V) |
| Voltage applied to any pin (Input current limited to +/-20 mA) |
(VSS 1.0V) to (VDD + 1.0V) |
| Lead temperature (soldering 10 seconds) | 3000C |
| VDD - VSS | -0.5V to +6V |

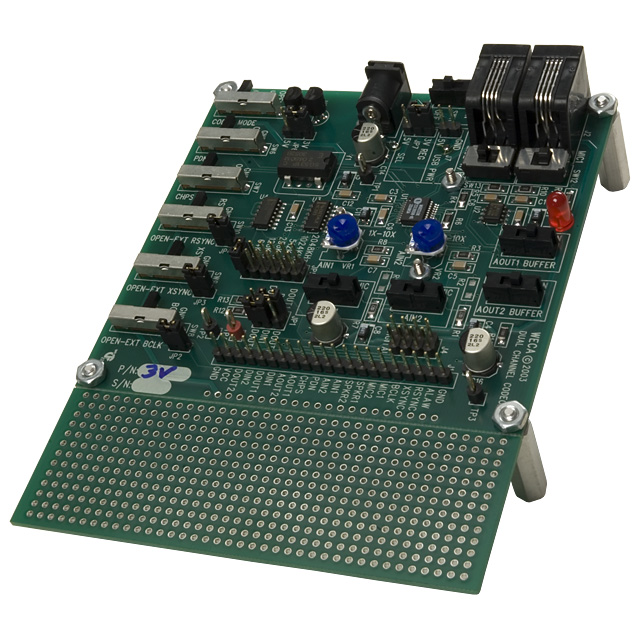

| Technical/Catalog Information | W682310DK |
| Vendor | Nuvoton Technology Corporation of America |
| Category | Programmers, Development Systems |
| Main Purpose | Audio, CODEC |
| Primary Attributes | Dual, PCM, 8-Bit |
| Secondary Attributes | ADC and DAC Filtering Compliant with ITU G.712 |
| Supplied Contents | Board, Power Supply |
| Utilized IC / Part | W682310 |
| Embedded | No |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | W682310DK W682310DK |
