Features:

• Single +3V power supply (2.7V to 5.25V)
• Typical power dissipation of 10 mW, power-down mode of 0.5 W
• Fully-differential analog circuit design
• On-chip precision reference of 0.886 V for a -5 dBm TLP at 600
• Push-pull power amplifiers with external gain adjustment with 300 load capability
• Eight master clock rates of 256 kHz to4.800 MHz
• Pin-selectable -Law and A-Law companding (compliant with ITU G.711)
• CODEC A/D and D/A filtering compliant with ITU G.712
• Industrial temperature range (40°C to +85°C)
• Packages: 20-pin SOG (SOP), SSOP and TSSOP
• Pb-Free package options available



Application

• VoIP, Voice over Networks
• Digital telephone and communication systems
• Wireless voice devices
• PABX/SOHO systems
• Local loop card
• SOHO routers
• Fiber-to-curb equipment
• Enterprise phones
• ISDN equipment
• Modems/PC cards
• Digital Voice Recorders



Pinout

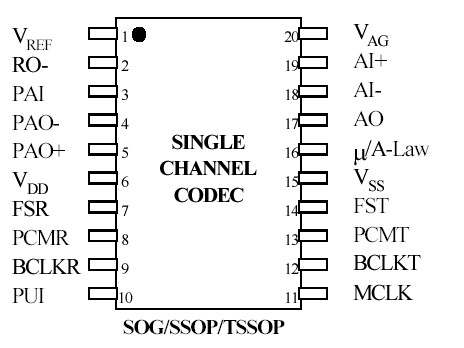

  Connection Diagram


Specifications

Condition
Value
Junction temperature
Storage temperature range
Voltage Applied to any pin
Voltage applied to any pin (Input current limited to +/-20 mA)
VDD -VSS
150
-65 to +150
(VSS - 0.3V) to (VDD + 0.3V)
(VSS 1.0V) to (VDD + 1.0V)
-0.5V to +6V

1. Stresses above those listed may cause permanent damage to the device. Exposure to the absolute maximum ratings may affect device reliability. Functional operation is not implied at these conditions.




Description

The W681310 is a general-purpose single channel PCM CODEC with pin-selectable -Law or A-Law companding. The device is compliant with the ITU G.712 specification. It operates from a single +3V power supply and is available in 20-pin SOG, SSOP and TSSOP package options. Functions performed include digitization and reconstruction of voice signals, and band limiting and smoothing filters required for PCM systems. W681310 performance is specified over the industrial temperature range of 40°C to +85°C.

The W681310 includes an on-chip precision voltage reference and an additional power amplifier, capable of driving 300 loads differentially up to a level of 3.544V peak-to-peak. The analog section is fully differential, reducing noise and improving the power supply rejection ratio. The data transfer protocol supports both long-frame and short-frame synchronous communications for PCM applications, and IDL and GCI communications for ISDN applications. W681310 accepts eight master clock rates between 256 kHz and 4.800 MHz, and an on-chip pre-scaler automatically determines the division ratio for the required internal clock.

For fast evaluation and prototyping purposes, the W681310DK development kit is available.
