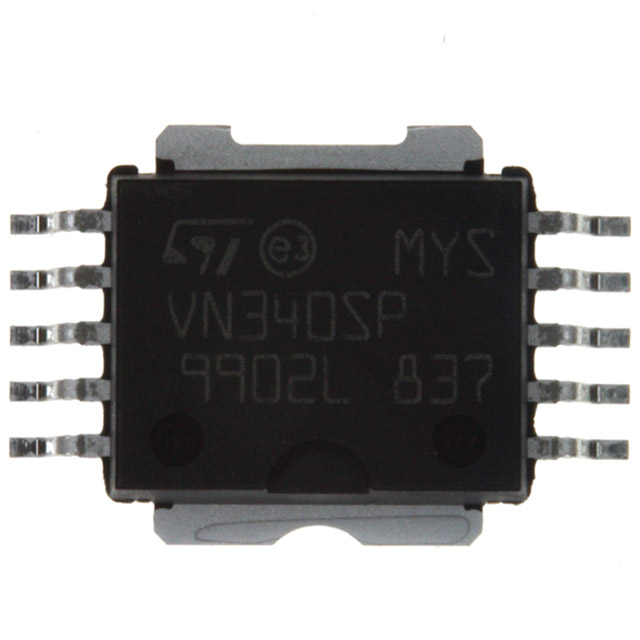

MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:SOP-10 D/C:08+
VN340SP13TR, VN340SP-33-E, VN340SP-E Datasheet download
Category: Integrated Circuits (ICs)
MFG: STMicroelectronics
Package Cooled: SOP-10
D/C: 08+
Description: IC DRIVER QUAD 0.7A POWERSO-10
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: VN340SP13TR
File Size: 227831 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
PDF/DataSheet Download
Datasheet: VN340SP-33-E
File Size: 218382 KB
Manufacturer: ST
Download : Click here to Download
PDF/DataSheet Download
Datasheet: VN340SP-E
File Size: 218382 KB
Manufacturer: ST
Download : Click here to Download
| Technical/Catalog Information | VN340SP-33-E |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Mounting Type | Surface Mount |
| Type | High Side |
| Voltage - Supply | 10 V ~ 36 V |
| On-State Resistance | 200 mOhm |
| Current - Output / Channel | 1A |
| Current - Peak Output | 4A |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Number of Outputs | 4 |
| Operating Temperature | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | VN340SP 33 E VN340SP33E |
The VN340SP-33-E is a monolithic device made using STMicroelectronics VIPower technology, intended for driving four independent resistive or inductive loads with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from overtemperature and short circuit. The open drain diagnostic output indicates overtemperature conditions. Each I/O is pulled down when overtemperature condition of the relative channel is verified.
| Symbol | Parameter | Value | Unit |
| VCC VCC |
DC supply voltage Reverse supply voltage |
45 -4 |
V V |
| IOUT | Output current | Internally limited | A |
| IR IIN |
Reverse output current Input current |
-6 ± 10 |
A mA |
| IDIAG | Diag pin current | ± 10 | mA |
| VESD | Electrostatic discharge (R = 1.5 k; C = 100 pF) | 2000 |
V |
| EAS | Single pulse avalanche energy per channel not simultaneously Figure 4. |
400 | mJ |
| PTOT TJ |
Power dissipation at Tc=25 Junction operating temperature |
Internally limited Internally limited |
W |
| TSTG | Storage temperature | -55 to 150 |
| Technical/Catalog Information | VN340SP-E |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Mounting Type | Surface Mount |
| Type | High Side |
| Voltage - Supply | 10 V ~ 36 V |
| On-State Resistance | 200 mOhm |
| Current - Output / Channel | 700mA |
| Current - Peak Output | 4A |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Number of Outputs | 4 |
| Operating Temperature | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | VN340SP E VN340SPE 497 5053 5 ND 49750535ND 497-5053-5 |
The VN340SP-E is a monolithic device made using STMicroelectronics VIPower technology, intended for driving four indipendent resistive or inductive loads with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from overtemperature and short circuit. The open drain diagnostic output indicates overtemperature conditions. Each I/O is pulled down when overtemperature condition of the relative channel is verified.
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Power supply voltage |
45 |
V |
|
-VCC |
Reverse supply voltage |
-4 |
V |
|
IOUT |
Output current (continuos) |
Internally limited |
A |
|
IR |
Reverse output current (per channel) |
-6 |
A |
|
IIN |
Input current (per channel) |
± 10 |
mA |
|
IDIAG |
Diag pin current |
± 10 |
mA |
|
VESD |
Electrostatic discharge (R = 1.5K; C = 100pF) |
2000 |
V |
|
EAS |
Single pulse avalanche energy per channel not simultaneously Figure 4. |
400 |
mJ |
|
Ptot |
Power dissipation at Tc = 25°C |
Internally limited |
w |
|
TJ |
Junction operating temperature |
Internally limited |
|
|
TSTG |
Storage temperature |
-55 to 150 |
