VN330SP-32-E, VN330SP-E, VN330SPTR-32-E

Table of contents:
Info of VN330SP-32-E
Info of VN330SP-E
Info of VN330SPTR-32-E

VN330SP-32-E, VN330SP-E, VN330SPTR-32-E Selling Leads, Datasheet

MFG:STMicroelectronics (VA) Category:Integrated Circuits (ICs) Package Cooled:7000 D/C:06+07+pb-free

VN330SP-32-E, VN330SP-E, VN330SPTR-32-E Datasheet download

Five Points

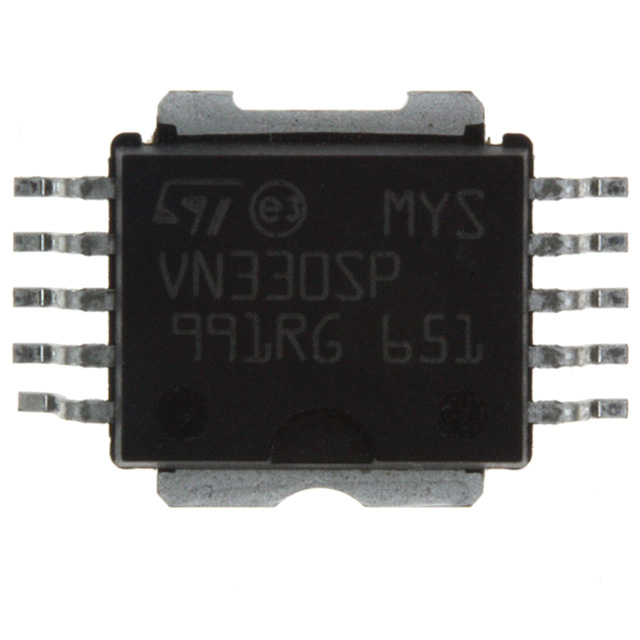

Part Number: VN330SP-E

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics (VA)

Package Cooled: 7000

D/C: 06+07+pb-free

Description: IC SSR HIGHSIDE QUAD POWERSO10

Price Break

1000

Unit Price

3.99000

Extended Price

3990.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

VN330SP-32-E Parameters

Technical/Catalog Information	VN330SP-32-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	10 V ~ 36 V
On-State Resistance	200 mOhm
Current - Output / Channel	1A
Current - Peak Output	4A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VN330SP 32 E VN330SP32E

VN330SP-32-E General Description

The VN330SP-32-E is a monolithic device made using STMicroelectronics VIPower Technology, intended for driving four indipendent resistive or inductive loads with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from overtemperature and short circuit. The open drain diagnostic output indicates over-temperature conditions.

VN330SP-32-E Maximum Ratings

Symbol	Parameter	Value	Unit
V_CC	Power supply voltage	45	V
-V_CC	Reverse supply voltage	-0.3	V
I_OUT	Output current (continuos)	Internally limited	A
I_R	Reverse output current (per channel)	-6	A
I_IN	Input current (per channel)	± 10	mA
I_DIAG	Diag pin current	± 10	mA
V_ESD	Electrostatic discharge (R = 1.5KW; C = 100pF)	2000	V
E_AS	Single pulse avalanche energy per channel not simultaneously Figure 3.	400	mJ
P_tot	Power dissipation at Tc <= 25°C	Internally limited	W
T_J	Junction operating temperature	Internally limited
T_stg	Storage Temperature	-55 to 150

VN330SP-32-E Features

OUTPUT CURRENT : 1A PER CHANNEL
DIGITAL INPUT CLAMPED AT 32V MINIMUM VOLTAGE
SHORTED LOAD AND OVERTEMPERATURE PROTECTIONS
BUILT-IN CURRENT LIMITER
UNDERVOLTAGE SHUT-DOWN
OPEN DRAIN DIAGNOSTIC OUTPUT
FAST DEMAGNETIZATION OF INDUCTIVE LOADS

VN330SP-E Parameters

Technical/Catalog Information	VN330SP-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	10 V ~ 36 V
On-State Resistance	200 mOhm
Current - Output / Channel	700mA
Current - Peak Output	4A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VN330SP E VN330SPE 497 5052 5 ND 49750525ND 497-5052-5

VN330SP-E General Description

The VN330SP-E is a monolithic device made using STMicroelectronics VIPower technology, intended for driving four indipendent resistive or inductive loads, with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from overtemperature and short circuit. The open drain diagnostic output indicates overtemperature conditions.

VN330SP-E Maximum Ratings

Parameter	Symbol	Value	Units
Power supply voltage	V_(BR)DSS	45	V
Reverse supply voltage	I_OUT	0.3	MA
Output current (continuos)	I_R	Internally limited	A
Reverse output current (per channel)	I_IN	-6	mA
Input current (per channel)	-V_CC	± 10	mA
Diag pin current	I_STAT	±10	mA
Electrostatic discharge (R = 1.5KΩ; C = 100pF)	V_ESD	2000	V
Single pulse avalanche energy per channel not simultaneously Figure 4.	P_tot	Internally limited	°C
Storage Temperature	V_CSENSE	-55 to 150	°C

VN330SP-E Features

Output current : 0.7A per channel
Digital input clamped at 32V minimum voltage
Shorted load and overtemperature protections
Built-in current limiter
Undervoltage shut-down
Open drain diagnostic output
Fast demagnetization of inductive loads
Conforms to IEC 61131-2

VN330SP-E Connection Diagram

VN330SPTR-32-E Parameters

Technical/Catalog Information	VN330SPTR-32-E
Vendor	STMicroelectronics (VA)
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	10 V ~ 36 V
On-State Resistance	200 mOhm
Current - Output / Channel	1A
Current - Peak Output	4A
Packaging	Cut Tape (CT)
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VN330SPTR 32 E VN330SPTR32E 497 8168 1 ND 49781681ND 497-8168-1
