TMF8901B, TMF8901F, TMF93CS45F Selling Leads, Datasheet

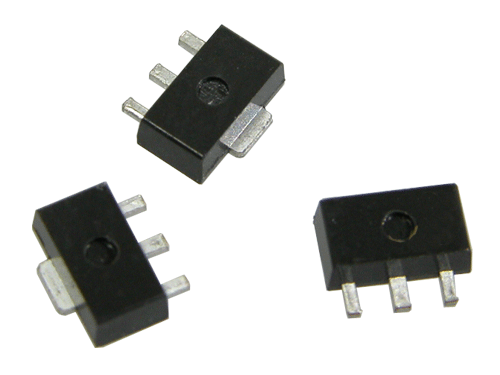

MFG:AUK Package Cooled:SOT-223 D/C:09+
TMF8901B, TMF8901F, TMF93CS45F Datasheet download
Part Number: TMF8901B
MFG: AUK
Package Cooled: SOT-223
D/C: 09+
TMF8901B, TMF8901F, TMF93CS45F
- Table of contents:
Info of TMF8901B
Info of TMF8901F
Info of TMF93CS45F
Attentive hint
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
Top Sellers:
TOP
About
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
About
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
About
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
TMF8901B General Description
| LDMOS Power Transistor (3W) |
| TMF8901B is used as power amplifier for VHF and UHF band applications, especially FRS. |
TMF8901B Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Drain to Source Voltage | VDS | 13.0 | V |
| Gate to Source Voltage | VGS | 4.0 | V |
| Drain Current | ID | 1.2 | A |
| Total Power Dissipation | Ptot | 5.0 | W |
| Channel Temperature | Tch | 150 | |
| Storage Temperature | Tstg | -65 ~ 150 |
TMF8901B Features
- Power gain
GP = 12.4 dB at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
GP = 14.7 dB at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz
- Output power
POUT = 32.4 dBm at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
POUT = 34.7 dBm at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz
- Drain efficiency
D = 60 % (typ.)
GP = 12.4 dB at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
GP = 14.7 dB at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz
- Output power
POUT = 32.4 dBm at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
POUT = 34.7 dBm at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz
- Drain efficiency
D = 60 % (typ.)
TMF8901B Typical Application
- VHF and UHF wide band amplifier
TMF8901B Connection Diagram
TMF8901F General Description
| LDMOS Power Transistor (1.5W) |
| TMF8901F is used as power amplifier for VHF and UHF band applications, especially FRS. |
TMF8901F Maximum Ratings
|
Parameter |
Symbol |
Ratings |
Unit |
| Drain to source voltage |
VDS |
13 |
V |
| Gate to source voltage |
VGS |
4 |
V |
| Drain Current |
ID |
1.2 |
A |
| Total Power Dissipation |
PTOT |
3 |
W |
| Channel Temperature |
TCH |
150 |
|
| Storage Temperature |
Tstg |
-65 ~ 150 |
TMF8901F Features
- Power gain GP = 12.5 dB at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
- Output power POUT = 32 dBm at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
- Drain efficiency D = 60 % (typ.)
- Output power POUT = 32 dBm at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
- Drain efficiency D = 60 % (typ.)
TMF8901F Typical Application
- VHF and UHF wide band amplifier
TMF8901F Connection Diagram
