TMF8901B

Features: - Power gainGP = 12.4 dB at VDS = 4.5 V, IDset = 200 mA, f = 470 MHzGP = 14.7 dB at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz- Output powerPOUT = 32.4 dBm at VDS = 4.5 V, IDset = 200 mA, f = 470 MHzPOUT = 34.7 dBm at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz- Drain efficiencyD = 60 % (typ....

product image

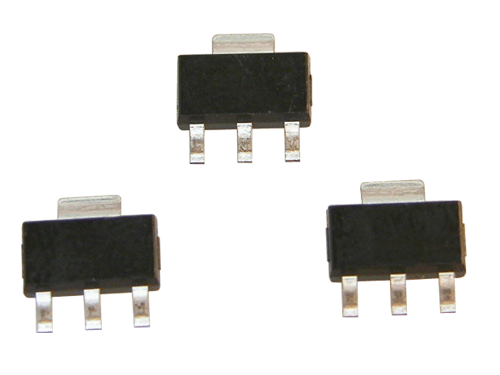

TMF8901B Picture
See larger image
SeekIC No. : 004523695 Detail

TMF8901B: Features: - Power gainGP = 12.4 dB at VDS = 4.5 V, IDset = 200 mA, f = 470 MHzGP = 14.7 dB at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz- Output powerPOUT = 32.4 dBm at VDS = 4.5 V, IDset = 200 mA, f ...

TMF8901B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMF8901B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

- Power gain
GP = 12.4 dB at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
GP = 14.7 dB at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz
- Output power
POUT = 32.4 dBm at VDS = 4.5 V, IDset = 200 mA, f = 470 MHz
POUT = 34.7 dBm at VDS = 6.0 V, IDset = 200 mA, f = 470 MHz
- Drain efficiency
D = 60 % (typ.)




Application

- VHF and UHF wide band amplifier




Pinout

Connection Diagram






Specifications

Parameter Symbol Ratings Unit
Drain to Source Voltage VDS 13.0 V
Gate to Source Voltage VGS 4.0 V
Drain Current ID 1.2 A
Total Power Dissipation Ptot 5.0 W
Channel Temperature Tch 150
Storage Temperature Tstg -65 ~ 150





Description

LDMOS Power Transistor (3W)
TMF8901B is used as power amplifier for VHF and UHF band applications, especially FRS.
