SGL160N60UF, SGL160N60UFD, SGL160N60UFDTU Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: TO-264
D/C: 08+/09+

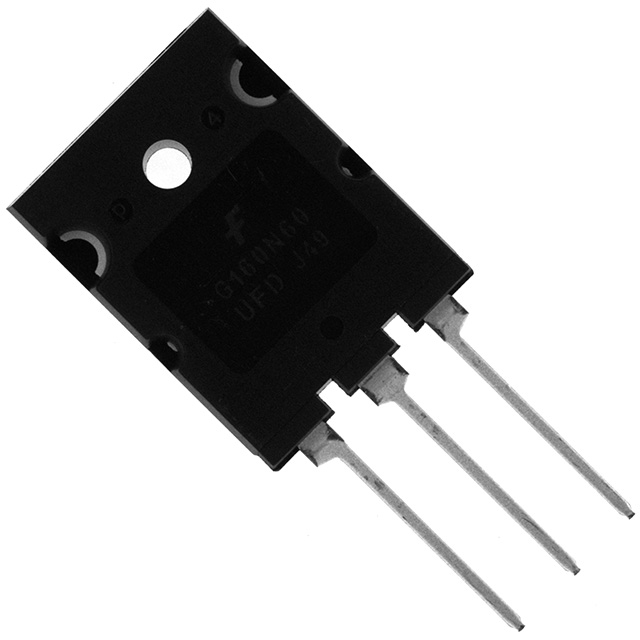

Description: IGBT ULTRA FAST 600V 160A TO264
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SGL160N60UF
File Size: 587503 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SGL160N60UFD
File Size: 678024 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SGL-0163
File Size: 216680 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
Fairchild's UF series of Insulated Gate Bipolar Transistors (IGBTs) provides low conduction and switching losses.
The UF series is designed for applications such as motor control and general inverters where high speed switching is a required feature.
| Symbol | Description | SGH20N120RUFD | Units |
| VCES | Collector-Emitter Voltage | 600 | V |
| VCES | Gate-Emitter Voltage | ±20 | V |
| IC | Collector Current @ TC = 25 | 160 | A |
| Collector Current @ TC = 100 | 80 | A | |
| I CM(1) | Pulsed Collector Current | 300 | A |
| PD | Maximum Power Dissipation @ TC = 25 | 250 | W |
| Maximum Power Dissipation @ TC = 100 | 100 | W | |
| TJ | Operating Junction Temperature | -55 to +150 | |
| Tstg | Storage Temperature Range | -55 to +150 | |
| TL | Maximum Lead Temp. for soldering Purposes, 1/8" from case for 5 seconds |
300 |
Fairchild's UFD series of Insulated Gate Bipolar Transistors (IGBTs) provides low conduction and switching losses.
The UFD series is designed for applications such as motor control and general inverters where high speed switching is a required feature.
| Symbol | Description | SGH20N120RUFD | Units |
| VCES | Collector-Emitter Voltage | 600 | V |
| VCES | Gate-Emitter Voltage | ±20 | V |
| IC | Collector Current @ TC = 25 | 160 | A |
| Collector Current @ TC = 100 | 80 | A | |
| I CM(1) | Pulsed Collector Current | 300 | A |
| IF | Diode Continuous Forward Current @ TC = 100 | 25 | A |
| IFM | Diode Maximum Forward Current | 280 | A |
| PD | Maximum Power Dissipation @ TC = 25 | 250 | W |
| Maximum Power Dissipation @ TC = 100 | 100 | W | |
| TJ | Operating Junction Temperature | -55 to +150 | |
| Tstg | Storage Temperature Range | -55 to +150 | |
| TL | Maximum Lead Temp. for soldering Purposes, 1/8" from case for 5 seconds |
300 |
| Technical/Catalog Information | SGL160N60UFDTU |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Input Type | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 160A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 80A |
| Power - Max | 250W |
| Mounting Type | Through Hole |
| Package / Case | TO-264 |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SGL160N60UFDTU SGL160N60UFDTU |
