MFG:Sirenza Microdevices Inc (VA) Category:RF and RFID Package Cooled:SOT363 D/C:09+
SGL-0363Z, SGL-0622, SGL-0622Z Datasheet download
Category: RF and RFID
MFG: Sirenza Microdevices Inc (VA)
Package Cooled: SOT363
D/C: 09+
Description: IC AMP HBT SIGE 4000MHZ 8-QFN
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SGL-0163
File Size: 216680 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SGL-0163
File Size: 216680 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SGL-0163
File Size: 216680 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | SGL-0622Z |
| Vendor | Sirenza Microdevices Inc (VA) |
| Category | RF and RFID |
| Package / Case | 8-QFN |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Supply | 7.5mA ~ 12.5mA |
| Gain | 14.5dB ~ 18.5dB |
| Frequency | 5MHz ~ 4GHz |
| RF Type | ISM, GPS, 802.16/WiMax |
| Packaging | Cut Tape (CT) |
| Noise Figure | 2.8dB |
| P1db | -1.4dBm |
| Test Frequency | 3.5GHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SGL 0622Z SGL0622Z 599 1078 1 ND 59910781ND 599-1078-1 |

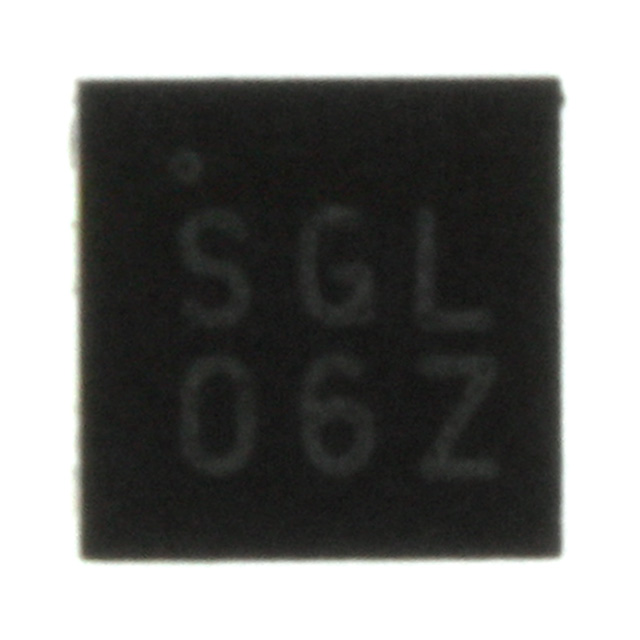

The SGL-0622Z is a low noise, high gain MMIC LNA designed for low power single-supply operation from 2.7-3.6V. Its Class-1C ESD protection and high input overdrive capability ensures rugged performance, while its integrated active bias circuit maintains robust stable bias over temperature and process beta variation. The SGL-0622Z is internally matched from 5-4000 MHz and requires only 4-5 external biasing components (DC blocks, bypass caps, inductive choke). The SGL-0622Z is fabricated using highly repeatable Silicon Germanium technology and is housed in a cost-effective RoHS/ WEEE compliant QFN 2x2 miniature package.
| Parameter | Absolute Limit |
| Max Device Current (ID) | 20mA |
| Max Device Voltage (VD) | 4 V |
| Max. RF Input Power* (See Note) | +18 dBm |
| Max. Junction Temp. (TJ) | +150 |
| Operating Temp. Range (TL) | -40 to +85 |
| Max. Storage Temp. | +150 |
