SBT3904F, SBT3906, SBT3906F

Table of contents:
Info of SBT3904F
Info of SBT3906
Info of SBT3906F

SBT3904F, SBT3906, SBT3906F Selling Leads, Datasheet

MFG:972 Package Cooled:SOT-23F D/C:06+

SBT3904F, SBT3906, SBT3906F Datasheet download

Five Points

Part Number: SBT3904F

MFG: 972

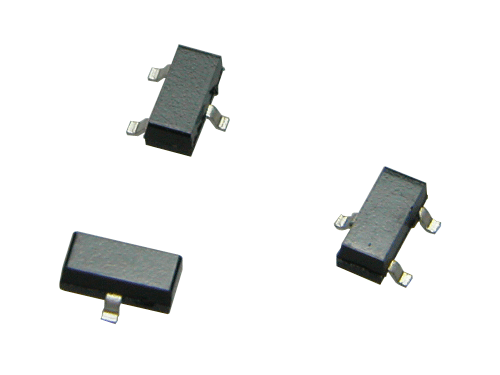

Package Cooled: SOT-23F

D/C: 06+

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SBT3904F General Description

• General small signal application
• Switching application

SBT3904F Maximum Ratings

Characteristic	Symbol	Ratings	Unit
Collector-Base voltage	V_CBO	60	V
Collector-Emitter voltage	V_CEO	40	V
Emitter-base voltage	V_EBO	6	V
Collector current	I_C	200	mA
Collector dissipation	P_C^*	350	mW
Junction temperature	T_j	150	°C
Storage temperature range	T_stg	-55~150	°C

SBT3904F Features

• Low collector saturation voltage
• Collector output capacitance
• Complementary pair with SBT3906F

SBT3906 General Description

Bipolar transistors, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)

SBT3906 Features

• Low collector saturation voltage
• Collector output capacitance
• Complementary pair with SBT3904

SBT3906 Typical Application

Characteristic	Symbol	Ratings	Unit
Collector-Base voltage	V_CBO	-40	V
Collector-Emitter voltage	V_CEO	-40	V
Emitter-base voltage	V_EBO	-5	V
Collector current	I_C	-200	mA
Collector dissipation	P_C^*	350	mW
Junction temperature	T_j	150	°C
Storage temperature range	T_stg	-55~150	°C

SBT3906 Connection Diagram

SBT3906F General Description

• General small signal application
• Switching application

SBT3906F Features

• Low collector saturation voltage
• Collector output capacitance
• Complementary pair with SBT3904F

SBT3906F Typical Application

Characteristic	Symbol	Ratings	Unit
Collector-Base voltage	V_CBO	-40	V
Collector-Emitter voltage	V_CEO	-40	V
Emitter-base voltage	V_EBO	-5	V
Collector current	I_C	-200	mA
Collector dissipation	P_C^*	350	mW
Junction temperature	T_j	150	°C
Storage temperature range	T_stg	-55~150	°C
