SBT2907AUF, SBT30-02, SBT3904 Selling Leads, Datasheet
MFG:1275 Package Cooled:06+ D/C:06+
SBT2907AUF, SBT30-02, SBT3904 Datasheet download

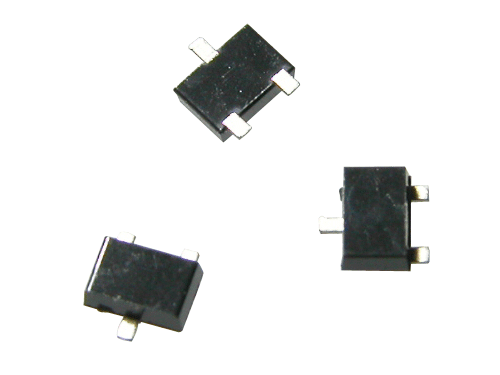

Part Number: SBT2907AUF
MFG: 1275
Package Cooled: 06+
D/C: 06+
SBT2907AUF, SBT30-02, SBT3904
- Table of contents:
Info of SBT2907AUF
Info of SBT30-02
Info of SBT3904
Attentive hint
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
Top Sellers:
TOP
About SBT2907AUF
PDF/DataSheet Download
Datasheet: SBT2907AUF
File Size: 69832 KB
Manufacturer: AUK [AUK corp]
Download : Click here to Download
About SBT10100
PDF/DataSheet Download
Datasheet: SBT10100
File Size: 396735 KB
Manufacturer: Diotec Semiconductor
Download : Click here to Download
About SBT3904
PDF/DataSheet Download
Datasheet: SBT3904
File Size: 52410 KB
Manufacturer: AUK [AUK corp]
Download : Click here to Download
SBT2907AUF General Description
• General purpose application
• Switching application
SBT2907AUF Maximum Ratings
|
Characteristic |
Symbol | Ratings | Unit |
| Collector-Base voltage | VCBO | -60 | V |
| Collector-Emitter voltage | VCEO | -60 | V |
| Emitter-base voltage | VEBO | -5 | V |
| Collector current | IC | -600 | mA |
| Collector dissipation | PC* | 350 | mW |
| Junction temperature | Tj | 150 | °C |
| Storage temperature range | Tstg | -55~150 | °C |
SBT2907AUF Features
• Low Leakage current
• Low collector saturation voltage enabling low voltage operation
• Complementary pair with SBT2222AUF
SBT2907AUF Connection Diagram
SBT3904 General Description
• General small signal application
• Switching application
SBT3904 Maximum Ratings
|
Characteristic |
Symbol | Ratings | Unit |
| Collector-Base voltage | VCBO | 60 | V |
| Collector-Emitter voltage | VCEO | 40 | V |
| Emitter-base voltage | VEBO | 6 | V |
| Collector current | IC | 200 | mA |
| Collector dissipation | PC* | 350 | mW |
| Junction temperature | Tj | 150 | °C |
| Storage temperature range | Tstg | -55~150 | °C |
SBT3904 Features
• Low collector saturation voltage
• Collector output capacitance
• Complementary pair with SBT3906
SBT3904 Connection Diagram
