SBT2222AU, SBT2222AU/10, SBT2222AUF Selling Leads, Datasheet
MFG:AUK Package Cooled:SOT-323 D/C:06+
SBT2222AU, SBT2222AU/10, SBT2222AUF Datasheet download
Part Number: SBT2222AU
MFG: AUK

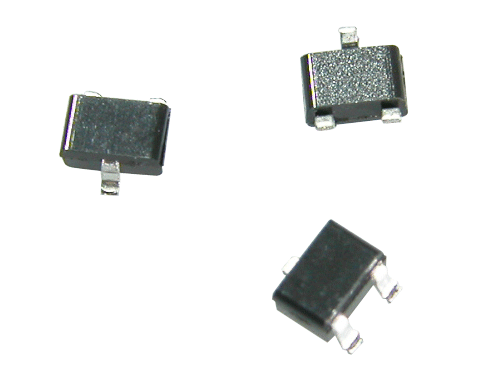

Package Cooled: SOT-323
D/C: 06+
MFG:AUK Package Cooled:SOT-323 D/C:06+
SBT2222AU, SBT2222AU/10, SBT2222AUF Datasheet download
MFG: AUK

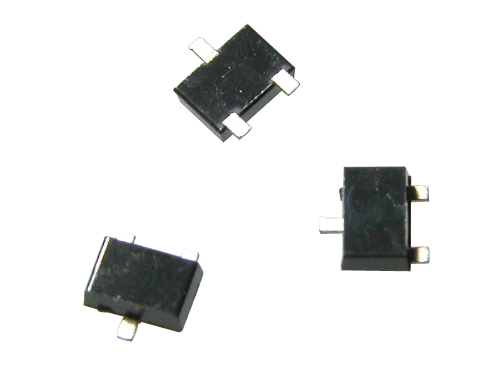

Package Cooled: SOT-323
D/C: 06+
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SBT2222AU
File Size: 196115 KB
Manufacturer: AUK [AUK corp]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SBT10100
File Size: 396735 KB
Manufacturer: Diotec Semiconductor
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SBT2222AUF
File Size: 196420 KB
Manufacturer: AUK [AUK corp]
Download : Click here to Download
Characteristic |
Symbol | Ratings | Unit |
Collector-Base voltage | VCBO | 75 | V |
Collector-Emitter voltage | VCEO | 40 | V |
Emitter-base voltage | VEBO | 5 | V |
Collector current | IC | 600 | mA |
Collector dissipation | PC* | 350 | mW |
Junction temperature | Tj | 150 | °C |
Storage temperature range | Tstg | -55~150 | °C |
• Low Leakage current
• Low collector saturation voltage enabling low voltage operation
• Complementary pair with SBT2907AU
• General purpose application
• Switching application
Characteristic |
Symbol | Ratings | Unit |
Collector-Base voltage | VCBO | 75 | V |
Collector-Emitter voltage | VCEO | 40 | V |
Emitter-base voltage | VEBO | 5 | V |
Collector current | IC | 600 | mA |
Collector dissipation | PC* | 350 | mW |
Junction temperature | Tj | 150 | °C |
Storage temperature range | Tstg | -55~150 | °C |
• Low Leakage current
• Low collector saturation voltage enabling low voltage operation
• Complementary pair with SBT2907AUF
