NSR0520V2T1G, NSR0530P2T5G, NSR0620P2T5G

Table of contents:
Info of NSR0520V2T1G
Info of NSR0530P2T5G
Info of NSR0620P2T5G

NSR0520V2T1G, NSR0530P2T5G, NSR0620P2T5G Selling Leads, Datasheet

MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:2009 D/C:65000

NSR0520V2T1G, NSR0530P2T5G, NSR0620P2T5G Datasheet download

Five Points

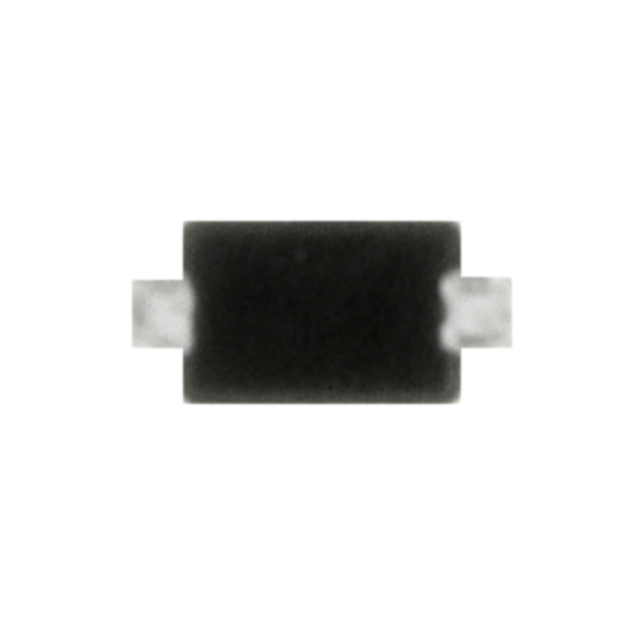

Part Number: NSR0520V2T1G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor

Package Cooled: 2009

D/C: 65000

Description: DIODE SCHOTTKY 20V 0.5A SOD-923

Price Break

1
10
100
250
500
1000

Unit Price

.45000
.31600
.20770
.15576
.14160
.11328

Extended Price

0.45
3.16
20.77
38.94
70.80
113.28

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NSR0520V2T1G Parameters

Technical/Catalog Information	NSR0520V2T1G
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	500mA (DC)
Voltage - Forward (Vf) (Max) @ If	480mV @ 500mA
Reverse Recovery Time (trr)	12ns
Current - Reverse Leakage @ Vr	75A @ 20V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	SOD-523
Packaging	Digi-Reel?
Capacitance @ Vr, F	35pF @ 1V, 1MHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSR0520V2T1G NSR0520V2T1G NSR0520V2T1GOSDKR ND NSR0520V2T1GOSDKRND NSR0520V2T1GOSDKR

NSR0530P2T5G Parameters

Technical/Catalog Information	NSR0530P2T5G
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	500mA (DC)
Voltage - Forward (Vf) (Max) @ If	620mV @ 500mA
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	200A @ 30V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	SOD-923
Packaging	Digi-Reel?
Capacitance @ Vr, F	10pF @ 1V, 1MHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSR0530P2T5G NSR0530P2T5G NSR0530P2T5GOSDKR ND NSR0530P2T5GOSDKRND NSR0530P2T5GOSDKR

NSR0620P2T5G Parameters

Technical/Catalog Information	NSR0620P2T5G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	500mA (DC)
Voltage - Forward (Vf) (Max) @ If	520mV @ 500mA
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	10A @ 10V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	SOD-923
Packaging	Tape & Reel (TR)
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSR0620P2T5G NSR0620P2T5G
