NSR0240HT1G, NSR0240P2T5G, NSR0240V2T1G

Table of contents:
Info of NSR0240HT1G
Info of NSR0240P2T5G
Info of NSR0240V2T1G

NSR0240HT1G, NSR0240P2T5G, NSR0240V2T1G Selling Leads, Datasheet

MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:2009 D/C:53200

NSR0240HT1G, NSR0240P2T5G, NSR0240V2T1G Datasheet download

Five Points

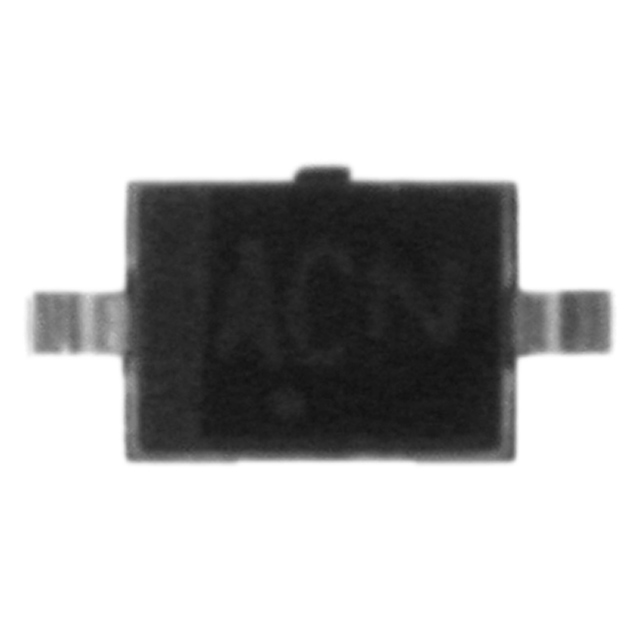

Part Number: NSR0240HT1G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor (VA)

Package Cooled: 2009

D/C: 53200

Description: DIODE SCHOTTKY 40V 250MA SOD523

Price Break

1
10
100
250
500
1000

Unit Price

.41000
.28000
.13080
.09340
.06352
.05044

Extended Price

0.41
2.80
13.08
23.35
31.76
50.44

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NSR0240HT1G Parameters

Technical/Catalog Information	NSR0240HT1G
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	250mA (DC)
Voltage - Forward (Vf) (Max) @ If	710mV @ 200mA
Reverse Recovery Time (trr)	3ns
Current - Reverse Leakage @ Vr	10A @ 40V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	SOD-323
Packaging	Digi-Reel?
Capacitance @ Vr, F	4pF @ 5V, 1MHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSR0240HT1G NSR0240HT1G NSR0240HT1GOSDKR ND NSR0240HT1GOSDKRND NSR0240HT1GOSDKR

NSR0240P2T5G Parameters

Technical/Catalog Information	NSR0240P2T5G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	600mV @ 200mA
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	5A @ 40V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Surface Mount
Package / Case	SOD-923
Packaging	Tape & Reel (TR)
Capacitance @ Vr, F	7pF @ 1V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSR0240P2T5G NSR0240P2T5G

NSR0240V2T1G Parameters

Technical/Catalog Information	NSR0240V2T1G
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	250mA (DC)
Voltage - Forward (Vf) (Max) @ If	700mV @ 200mA
Reverse Recovery Time (trr)	3ns
Current - Reverse Leakage @ Vr	10A @ 40V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	SOD-523
Packaging	Digi-Reel?
Capacitance @ Vr, F	4pF @ 5V, 1MHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSR0240V2T1G NSR0240V2T1G NSR0240V2T1GOSDKR ND NSR0240V2T1GOSDKRND NSR0240V2T1GOSDKR
