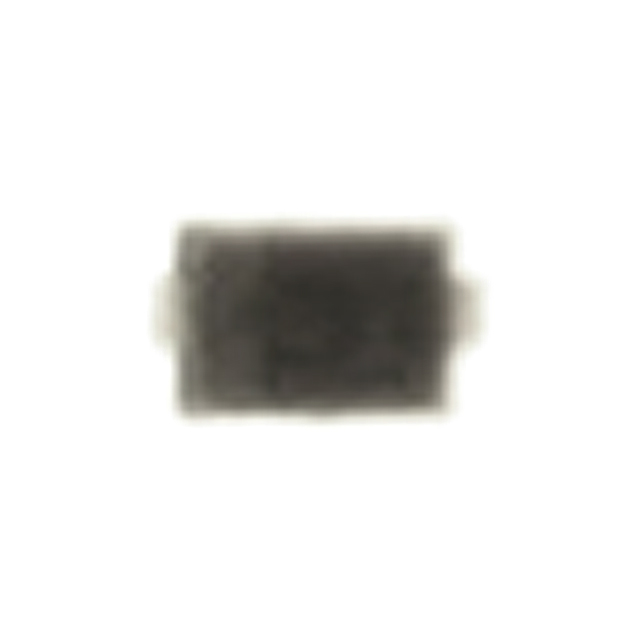

MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SOD-923 D/C:2007+
NSR0140P2T5G, NSR0230M2T5G, NSR0230P2T5G Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: SOD-923
D/C: 2007+
Description: DIODE SCHOTTKY 30V 200MA SOD-923
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NSR0320MW2T1
File Size: 28672 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NSR0320MW2T1
File Size: 28672 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NSR0320MW2T1
File Size: 28672 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
| Technical/Catalog Information | NSR0140P2T5G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 70mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 350mV @ 1mA |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500nA @ 30V |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Packaging | Digi-Reel? |
| Capacitance @ Vr, F | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NSR0140P2T5G NSR0140P2T5G NSR0140P2T5GOSDKR ND NSR0140P2T5GOSDKRND NSR0140P2T5GOSDKR |
| Technical/Catalog Information | NSR0230P2T5G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 200mA |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 10A @ 30V |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Packaging | Digi-Reel? |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NSR0230P2T5G NSR0230P2T5G NSR0230P2T5GOSDKR ND NSR0230P2T5GOSDKRND NSR0230P2T5GOSDKR |
