MJF6668G, MJH10012, MJH11017

Table of contents:
Info of MJF6668G
Info of MJH10012
Info of MJH11017

MJF6668G, MJH10012, MJH11017 Selling Leads, Datasheet

MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:09+ D/C:09+

MJF6668G, MJH10012, MJH11017 Datasheet download

Five Points

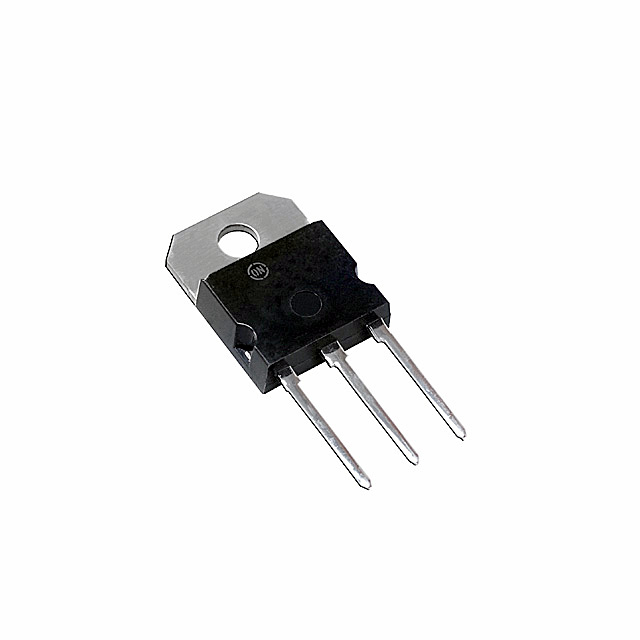

Part Number: MJH11017

Category: Discrete Semiconductor Products

MFG: ON Semiconductor

Package Cooled: 09+

D/C: 09+

Description: TRANS DARL PNP 15A 150V TO218

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MJF6668G Parameters

Technical/Catalog Information	MJF6668G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	100V
Current - Collector (Ic) (Max)	10A
Power - Max	40W
DC Current Gain (hFE) (Min) @ Ic, Vce	3000 @ 3A, 4V
Vce Saturation (Max) @ Ib, Ic	2V @ 6mA, 3A
Frequency - Transition	-
Current - Collector Cutoff (Max)	10A
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack (Straight Leads)
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MJF6668G MJF6668G MJF6668GOS ND MJF6668GOSND MJF6668GOS

MJH10012 Maximum Ratings

Rating	Symbol	MJ10012	MJH10012	Unit
CollectorEmitter Voltage	V_CEO	500		Vdc
CollectorEmitter Voltage (RBE = 27)	V_CBR	1000		Vdc
CollectorBase Voltage	V_CBO	6		Vdc
EmitterBase Voltage	V_EBO	8.0		Vdc
Collector Current - Continuous - Peak (1)	I_C	10 15		Adc
Base Current	I_B	2.0		Adc
Total Power Dissipation @ T_C = 25 @ T_C = 100 Derate above 25	P_D	175 100 1.0	118 47.5 1.05	Watts Watts W/
Operating and Storage Junction Temperature Range	T_J, T_stg	65 to +200	55 to +150

MJH10012 Typical Application

• CollectorEmitter Sustaining Voltage - VCEO(sus) = 400 Vdc (Min)
• 175 Watts Capability at 50 Volts
• Automotive Functional Tests

MJH11017 Parameters

Technical/Catalog Information	MJH11017
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP - Darlington
Voltage - Collector Emitter Breakdown (Max)	150V
Current - Collector (Ic) (Max)	15A
Power - Max	150W
DC Current Gain (hFE) (Min) @ Ic, Vce	400 @ 10A, 5V
Vce Saturation (Max) @ Ib, Ic	2.5V @ 100mA, 10A
Frequency - Transition	3MHz
Current - Collector Cutoff (Max)	1mA
Mounting Type	Through Hole
Package / Case	SOT-93, TO-218 (Straight Leads)
Packaging	Tube
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MJH11017 MJH11017 MJH11017OS ND MJH11017OSND MJH11017OS

MJH11017 Maximum Ratings

Rating	Symbol	MJH			Unit
Rating	Symbol	11018 11017	11020 11019	11022 11021	Unit
CollectorEmitter Voltage	V_CEO	150	200	250	Vdc
CollectorBase Voltage	V_CB	150	200	250	Vdc
EmitterBase Voltage	V_EB	5.0			Vdc
Collector Current - Continuous - Peak(1)	I_C	15 30			Adc
Base Current	I_B	0.5			Adc
Total Power Dissipation @ T_C = 25 Derate Above 25	P_D	0.5 1.2			Watts W/
Operating and Storage Junction Temperature Range	T_J, T_stg	65 to +150

MJH11017 Typical Application

• High DC Current Gain @ 10 Adc - hFE = 400 Min (All Types)
• CollectorEmitter Sustaining Voltage VCEO(sus) = 150 Vdc (Min) - MJH11018, 17 VCEO(sus) = 200 Vdc (Min) - MJH11020, 19 VCEO(sus) = 250 Vdc (Min) - MJH11022, 21
• Low CollectorEmitter Saturation Voltage VCE(sat) = 1.2 V (Typ) @ IC = 5.0 A VCE(sat) = 1.8 V (Typ) @ IC = 10 A
