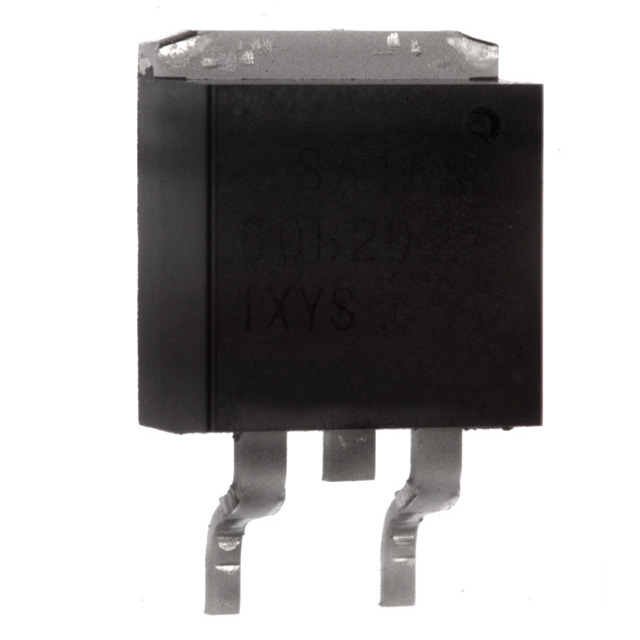

Part Number: IXSA10N60B2D1

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: TO-263 (D2 PAK)

D/C: 08+/09+

Description: IGBT HS W/DIODE 600V 20A TO263

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXSA10N60B2D1 Parameters

Technical/Catalog Information	IXSA10N60B2D1
Vendor	IXYS
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	20A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 10A
Power - Max	100W
Mounting Type	Surface Mount
Package / Case	D²Pak, TO-263 (2 leads + tab)
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXSA10N60B2D1 IXSA10N60B2D1

IXSA10N60B2D1 Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
V_CES V_CGR	T_J= 25°C to 150°C T_J = 25°C to 150°C; R_GE = 1 M	600 600	V V
V_GES V_GEM	Continuous Transient	±20 ±30	V
I_C25 I_C110I_F(110) I_CM	T_C= 25°C T_C= 90°C T_C = 25°C, 1 ms	20 10 11 30	A A A A
SSOA (RBSOA)	V_GE = 15 V, T_J= 125°C, R_G = 2.7 Clamped inductive load, V_CC= 0.8 V_CES	I_CM =20 @ 0.8 V_CES	A
t_SC(SCSOA)	VGE = 15 V, VCE = 360 V, TJ = 125°C RG = 33 ?, non repetitive	10	s
P_C	T_C= 25°C	100	W
T_J T_JM T_stg		-55 ... +150 150 -55 ... +150	°C °C °C
Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Plastic Body t = 10s		300 250	°C °C
M_d	Mounting torque	1.13/10	Nm/lb.in.
Weight		6	g

IXSA10N60B2D1 Features

• International standard packages
• Guaranteed Short Circuit SOA capability
• Low V_CE(sat) - for low on-state conduction losses
• High current handling capability
• MOS Gate turn-on
- drive simplicity
• Fast fall time for switching speeds up to 20 kHz

IXSA10N60B2D1 Typical Application

• AC motor speed control
• Uninterruptible power supplies (UPS)
• Welding
