MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:,TO-252 D/C:07+

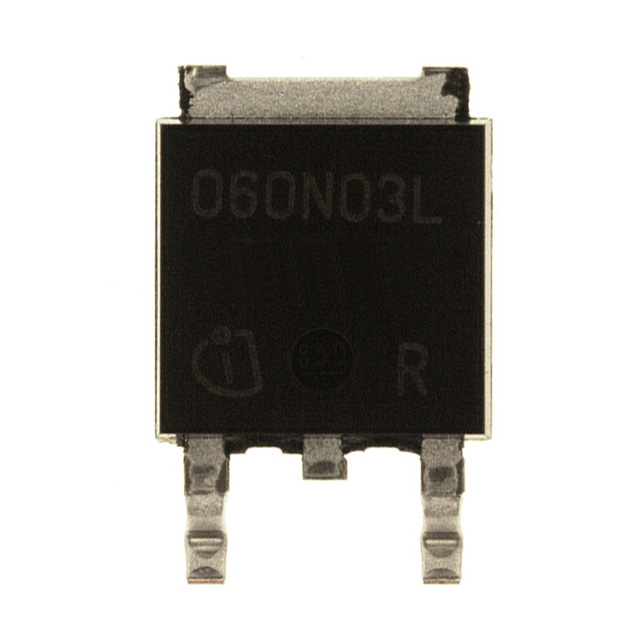

IPD05N03, IPD060N03L, IPD060N03LG Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: ,TO-252
D/C: 07+
Description: MOSFET N-CH 30V 50A TO252-3
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IPD05N03LA
File Size: 357314 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IPD03N03LA
File Size: 311361 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IPD03N03LA
File Size: 311361 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Technical/Catalog Information | IPD060N03LG |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 50A |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 30A, 10V |
| Input Capacitance (Ciss) @ Vds | 2400pF @ 15V |
| Power - Max | 56W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 23nC @ 10V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IPD060N03LG IPD060N03LG IPD060N03LGINTR ND IPD060N03LGINTRND IPD060N03LGINTR |
