MFG:Infineon Technologies Category:Integrated Circuits (ICs) Package Cooled:SOP8 D/C:04+

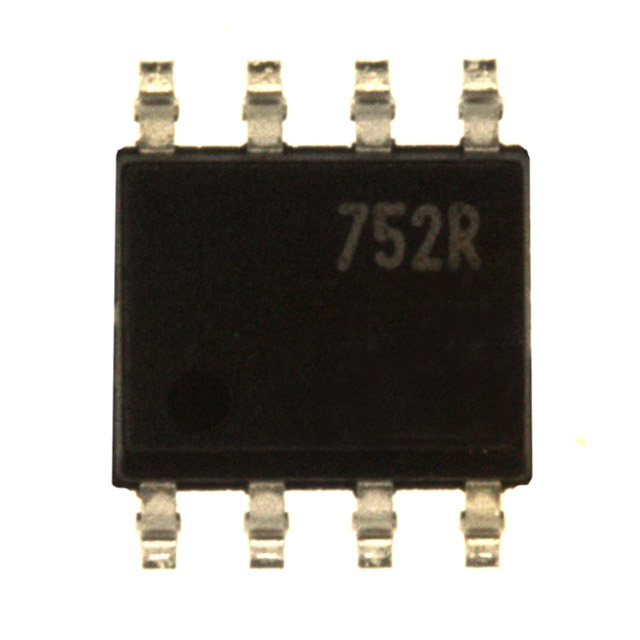

BSP752R, BSP752-R, BSP752R DENSO Datasheet download
Category: Integrated Circuits (ICs)
MFG: Infineon Technologies
Package Cooled: SOP8
D/C: 04+
Description: IC SWITCH HI SIDE POWER DSO-8
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BSP752R
File Size: 388403 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BSP030
File Size: 111955 KB
Manufacturer: PHILIPS [Philips Semiconductors]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BSP030
File Size: 111955 KB
Manufacturer: PHILIPS [Philips Semiconductors]
Download : Click here to Download
| Technical/Catalog Information | BSP752R |
| Vendor | Infineon Technologies |
| Category | Integrated Circuits (ICs) |
| Package / Case | DSO-8 |
| Mounting Type | Surface Mount |
| Type | High Side |
| Voltage - Supply | 6 V ~ 52 V |
| On-State Resistance | 150 mOhm |
| Current - Output / Channel | 1.7A |
| Current - Peak Output | 6.5A |
| Packaging | Tape & Reel (TR) |
| Input Type | Non-Inverting |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 150°C |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | BSP752R BSP752R BSP752RINTR ND BSP752RINTRND BSP752RINTR |
N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS®technology. Providing embedded protective functions.
|
Parameter |
Symbol |
Value |
Unit |
|
Supply voltage |
Vbb |
52 |
V |
|
Supply voltage for full short circuit protection |
Vbb(SC) |
50 | |
|
Continuous input voltage |
VIN |
-10 ... +16 | |
|
Load current (Short - circuit current, see page 5) |
IL |
self limited |
A |
|
Current through input pin (DC) |
IIN |
± 5 |
mA |
|
Operating temperature |
Tj |
-40 ...+150 |
°C |
|
Storage temperature |
Tstg |
-55 ... +150 | |
|
Power dissipation 1) |
Ptot |
1.5 |
W |
|
Inductive load switch-off energy dissipation1)2) single pulse, (see page 9 ) Tj =150 °C, IL = 1 A |
EAS |
125 |
mJ |
|
Load dump protection2) VLoadDump3)= VA + VS RI=2, td=400ms, VIN= low or high, VA=13,5V RL = 13.5 RL = 27 |
VLoaddump |
73.5 83.5 |
V |
|
Electrostatic discharge voltage (Human Body Model) according to ANSI EOS/ESD - S5.1 - 1993 ESD STM5.1 - 1998 Input pin all other pins |
VESD |
± 1 ± 5 |
kV |
