ATF22V10CQ-15XI, ATF22V10CQZ-15JI, ATF22V10CQZ-20JC

Table of contents:
Info of ATF22V10CQ-15XI
Info of ATF22V10CQZ-15JI
Info of ATF22V10CQZ-20JC

ATF22V10CQ-15XI, ATF22V10CQZ-15JI, ATF22V10CQZ-20JC Selling Leads, Datasheet

MFG:Atmel Category:Integrated Circuits (ICs) Package Cooled:N/A D/C:09+

ATF22V10CQ-15XI, ATF22V10CQZ-15JI, ATF22V10CQZ-20JC Datasheet download

Five Points

Part Number: ATF22V10CQ-15XI

Category: Integrated Circuits (ICs)

MFG: Atmel

Package Cooled: N/A

D/C: 09+

Description: IC PLD 10CELL QZ PWR 20NS 28PLCC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ATF22V10CQ-15XI Parameters

Technical/Catalog Information	ATF22V10CQ-15XI
Vendor	Atmel
Category	Integrated Circuits (ICs)
Speed	15ns

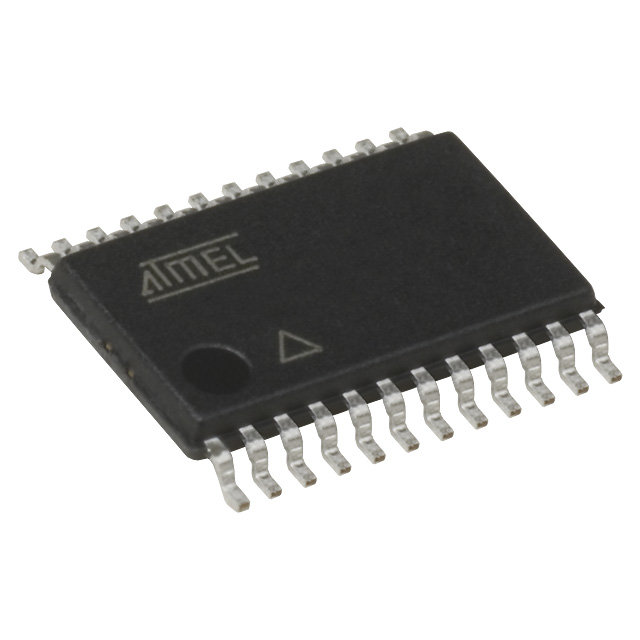

Package / Case	24-TSSOP
Voltage - Input	5V
Programmable Type	EE PLD
Number of Macrocells	10
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ATF22V10CQ 15XI ATF22V10CQ15XI

ATF22V10CQZ-20JC Parameters

Technical/Catalog Information	ATF22V10CQZ-20JC
Vendor	Atmel
Category	Integrated Circuits (ICs)
Speed	20ns
Package / Case	28-PLCC
Voltage - Input	5V
Programmable Type	EE PLD
Number of Macrocells	10
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ATF22V10CQZ 20JC ATF22V10CQZ20JC

ATF22V10CQZ-20JC General Description

The ATF22V10CZ/CQZ is a high-performance CMOS (electrically-erasable) programmable logic device (PLD) which utilizes Atmel's proven electrically-erasable

ATF22V10CQZ-20JC Maximum Ratings

Temperature Under Bias.................................. -40°C to +85°C
Storage Temperature ..................................... -65°C to +150°C
Voltage on Any Pin with
Respect to Ground .........................................-2.0V to +7.0V(1)
Voltage on Input Pins
with Respect to Ground
During Programming.....................................-2.0V to +14.0V(1)
Programming Voltage with
Respect to Ground .......................................-2.0V to +14.0V(1)

ATF22V10CQZ-20JC Features

• Industry-standard Architecture
• 12 ns Maximum Pin-to-pin Delay
• Zero Power 25 µA Maximum Standby Power (Input Transition Detection)
• CMOS and TTL Compatible Inputs and Outputs
• Advanced Electrically-erasableTechnology
Reprogrammable
100% Tested
• Latch Feature Holds Inputs to Previous Logic State
• High-reliability CMOS Process
20 Year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection
200 mA Latchup Immunity
• Commercial and Industrial Temperature Ranges
• Dual-in-line and Surface Mount Standard Pinouts
• PCI Compliant
