AOP604, AOP608, AOP609

Table of contents:
Info of AOP604
Info of AOP608
Info of AOP609

AOP604, AOP608, AOP609 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc Category:Discrete Semiconductor Products Package Cooled:PDIP-8 D/C:N/A

AOP604, AOP608, AOP609 Datasheet download

Five Points

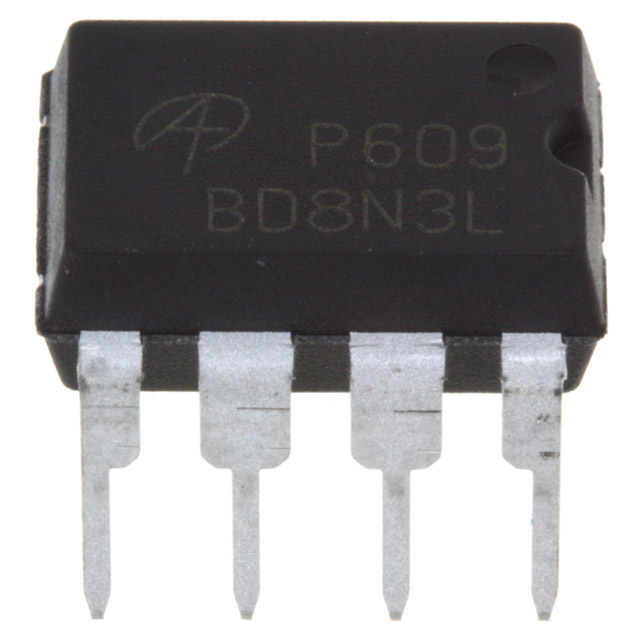

Part Number: AOP609

Category: Discrete Semiconductor Products

MFG: Alpha & Omega Semiconductor Inc

Package Cooled: PDIP-8

D/C: N/A

Description: MOSFET N/P-CH COMPL 60V 8-PDIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AOP604 General Description

The AOP604 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. The complementary MOSFETs form a high-speed power inverter, suitable for a multitude of applications. A Schottky diode in parallel with the n-channel FET reduces body diode related losses.

AOP604 Maximum Ratings

Parameter		Symbol	Max n-channel	Max p-channel	Units
Drain-Source Voltage		V_DS	30	-30	V
Gate-Source Voltage		V_GS	±20	±20	V
Continuous Drain Current ^A	T_A=25°C	_ID	7.5	-6.6	A
Continuous Drain Current ^A	T_A=70°C	_ID	6	-5.3
Pulsed Drain Current ^B		I_DM	30	-30
Power Dissipation	T_A=25°C	P_D	2.5	2.5	W
Power Dissipation	T_A=70°C	P_D	1.6	1.6	W
Junction and Storage Temperature Range		T_J, T_STG	-55 to 150	-55 to 150	°C

AOP604 Features

n-channel              p-channel
V_DS (V) = 30V        -30V
I_D= 7.5A               -6.6A
R_DS(ON)
< 28m                  < 35m (V_GS = 10V)
< 43m                  < 58m (V_GS = 4.5V)
Schottky
V_DS=30V, I_F=3A, V_F<0.5V@1A

AOP608 General Description

The AOP608 uses advanced trench technology MOSFETs to provide excellent R_DS(ON)and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications. Standard Product AOP608 is Pb-free (meets ROHS & Sony 259 specifications). AOP608L is a Green Product ordering option. AOP608 and AOP608L are electrically identical.

AOP608 Maximum Ratings

Parameter		Symbol	Max n-channel	Max p-channel	Units
Drain-Source Voltage		V_DS	40	-40	V
Gate-Source Voltage		V_GS	±20	±20	V
Continuous Drain Current	T_A=25°C	I_D	6.3	-5.5	A
Continuous Drain Current	T_A=70°C	I_D	5	-4.4
Pulsed Drain Current		I_DM	20	-20
Power Dissipation	T_A=25°C	P_D	2.5	2.5	W
Power Dissipation	T_A=70°C	P_D	1.6	1.6	W
Junction and Storage Temperature Range		T_J, T_STG	-55 to 150	-55 to 150	°C

AOP608 Features

n-channel                             p-channel
V_DS (V) = 40V                       -40V
I_D = 6.3A (V_GS=10V)             -5.5A (V_GS = -10V)
R_DS(ON)                                 R_DS(ON)
< 33m (V_GS=10V)               < 45m (V_GS = -10V)
< 46m (V_GS=4.5V)               < 63m (V_GS = -4.5V)

AOP608 Connection Diagram

AOP609 Parameters

Technical/Catalog Information	AOP609
Vendor	Alpha & Omega Semiconductor Inc
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N and P-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	4.7A, 3.5A
Rds On (Max) @ Id, Vgs	60 mOhm @ 4.7A, 10V
Input Capacitance (Ciss) @ Vds	570pF @ 30V
Power - Max	2.5W
Packaging	Tube
Gate Charge (Qg) @ Vgs	7nC @ 10V
Package / Case	8-DIP
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOP609 AOP609 785 1142 5 ND 78511425ND 785-1142-5

AOP609 General Description

The AOP609 uses advanced trench technology MOSFETs to provide excellent R _DS(ON) and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications. Standard Product AOP609 is Pbfree (meets ROHS & Sony 259 specifications). AOP609L is a Green Product ordering option. AOP609 and AOP609L are electrically identical.

AOP609 Maximum Ratings

Parameter		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	-60	V
Gate-Source Voltage		V_GS	±20	V
Continuous Drain Current ^A	T_A=25°C	I_D	-3.5	A
	T_A=100°C		-2.9
Pulsed Drain Current ^B		I_DM	-20
Power Dissipation ^A	T_A=25°C	P_DSM	2.5	W
	T_A=100°C		1.6
Junction and Storage Temperature Range		T_J,T_STG	-55 to 150	°C

AOP609 Features

n-channel                            p-channel
V_DS (V) = 60V                     -60V
I_D = 4.7A (V_GS=10V)            -3.5A (V_GS=-10V)
R _DS(ON)                               R _DS(ON)< 60m (V_GS=10V)             < 115m (V_GS =-10V)
< 75m (V_GS=4.5V)            < 140m (V_GS =-4.5V)
ESD Rating: 1500V HBM      3000V HMB

AOP609 Connection Diagram
