The A6810 devices combine 10-bit CMOS shift registers, ac com - pa ny ing data latches and control cir cuit ry with bipolar sourcing out puts and pnp active pull downs. De signed pri mar ily to drive vacuum-fl u o - res cent displays, the 60 V and -40 mA output ratings also allow these devices to be used in many other peripheral power driver ap pli ca tions. The A6810 feature an increased data input rate (com pared with the older UCN/UCQ5810-F) and a con trolled output slew rate.
The CMOS shift register and latches allow direct interfacing with microprocessor-based systems. With a 3.3 V or 5 V logic supply, serialdata input rates of at least 10 MHz .
A CMOS serial data output permits cascade con nec tions in ap pli - ca tions re quir ing additional drive lines. Similar devices are available as the A6812 (20 bits) and A6818 (32 bits).
The A6810 output source drivers are npn Dar ling tons, capable of sourcing up to 40 mA. The controlled output slew rate reduces elec tro - mag net ic noise, which is an important consideration in systems that include telecommunications and/or microprocessors and to meet government emissions regulations. For inter-digit blanking, all output drivers can be dis abled and all sink drivers turned on with a BLANK ING input high. The pnp active pull-downs will sink at least 2.5 mA.
The A6810 are available in three temperature ranges for op ti mum per for mance in commercial (suffi x S-), industrial (suffi x E-), or automtoive (suffi x K) ap pli ca tions. They are provided in two package styles for through-hole DIP (suffi x -A) or minimum-area surface-mount SOIC (suffi x -LW). Copper lead frames, low logic-power dis si pa tion, and low output-saturation voltages allow all devices to source 25 mA from all outputs continuously over the max i mum operating tem pera ture range.
The lead (Pb) free versions are provided with 100% matte tin leadframe plating.
A6810SA Maximum Ratings
Logic Supply Voltage, VDD ...................... 7.0 V Driver Supply Voltage, VBB ...................... 60 V Continuous Output Current Range, IOUT ................................... -40 mA to +15 mA Input Voltage Range, VIN ................................ -0.3 V to VDD + 0.3 V Package Power Dissipation, PD .................................................. See Graph Operating Temperature Range, TA (Suffi x 'E') ................... -40°C to +85°C (Suffi x 'K') ................. -40°C to +125°C (Suffi x 'S') ................... -20°C to +85°C Storage Temperature Range, TS ..................................... -55°C to +125°C Caution: These CMOS devices have input static protection (Class 2) but are still susceptible to damage if exposed to extremely high static electrical charges.
A6810SA Features
Controlled Output Slew Rate High-Speed Data Storage 60 V Minimum Output Breakdown High Data Input Rate PNP Active Pull-Downs Low Output-Saturation Voltages Low-Power CMOS Logic and Latches Improved Replacements for TL4810, UCN5810, and UCQ5810
A6810SA Connection Diagram
A6810SA-T Parameters
Technical/Catalog Information

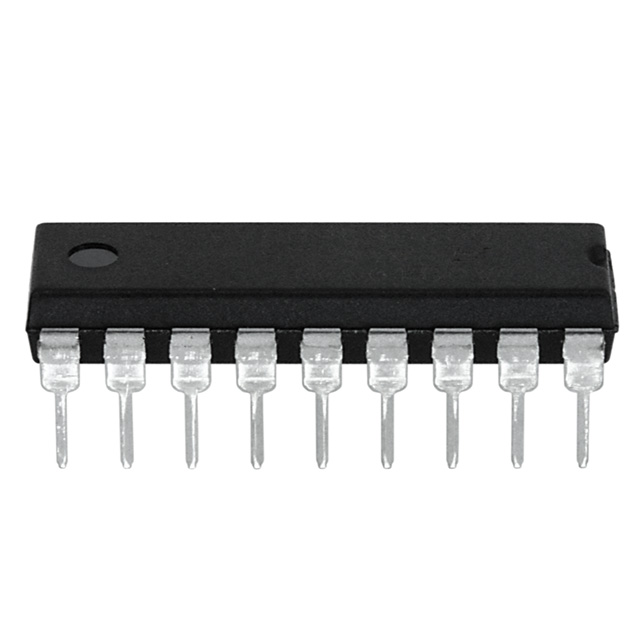

A6810SA-T
Vendor
Allegro Microsystems Inc
Category
Integrated Circuits (ICs)
Package / Case
18-DIP
Mounting Type
Through Hole
Type
Low Side
Voltage - Supply
-
On-State Resistance
-
Current - Output/Channel
25mA
Current - Peak Output
40mA
Packaging
Tube
Input Type
Parallel/Serial
Number of Outputs
10
Operating Temperature
-20°C ~ 85°C
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
A6810SA T A6810SAT 620 1092 ND 6201092ND 620-1092
A6810SA-T General Description
The A6810SA-T is designed as one kind of DABiC-IV, 20-bit serial-input, latched source driver that belongs to the A6810 family. A 20-bit CMOS shift register, accompanying data latches and control circuitry with bipolar sourcing out puts and pnp active pull downs formed this device. Each package of the A6810SA-T is available in a lead (Pb) free version, with 100% matte tin leadframe plating.
Features of the A6810SA-T are:(1)controlled output slew rate; (2)high-speed data storage; (3)60 V minimum output breakdown; (4)high data input rate; (5)PNP active pull-downs; (6)low output-saturation voltages; (7)low-power CMOS logic and latches; (8)improved replacements for TL5812, UCN5812, and UCQ5812.
The absolute maximum ratings of the A6810SA-T can be summarized as:(1)logic supply voltage:7.0 V;(2)driver supply voltage:60 V;(3)continuous output current range:-40 mA to +15 mA;(4)input voltage range:-0.3 V to VDD+0.3 V;(5)operating temperature range (suffi x "E"):-40°C to +85°C;(6)operating temperature range (suffi x "K"):-40°C to +125°C;(7)operating temperature range (suffi x "S"):-20°C to +85°C. If you want to know more information such as the electrical characteristics about the A6810SA-T, please download the datasheet in www.seekic.com or www.chinaicmart.com .
