A6810SA-T

Series: -
Type: Low Side
On-State Resistance: -
Mounting Type: Through Hole
Packaging: Tube
Voltage - Supply: -
Package / Case: 18-DIP (0.300", 7.62mm)
Supplier Device Package: 18-DIP
Manufacturer: Allegro Microsystems Inc
Operating Temperature: -20°C ~ 85°C
Input Type: Parallel/Serial
Number of Outputs: 10
Current - Output / Channel: 25mA
Current - Peak Output: 40mA


Features:

Controlled Output Slew Rate
High-Speed Data Storage
60 V Minimum Output Breakdown
High Data Input Rate
PNP Active Pull-Downs
Low Output-Saturation Voltages
Low-Power CMOS Logic and Latches
Improved Replacements for TL4810, UCN5810, and UCQ5810




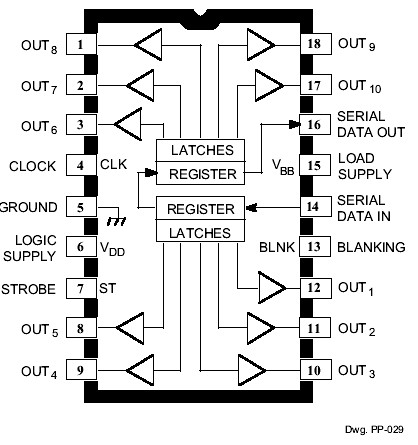

Pinout






Description

The A6810SA-T is designed as one kind of DABiC-IV, 20-bit serial-input, latched source driver that belongs to the A6810 family. A 20-bit CMOS shift register, accompanying data latches and control circuitry with bipolar sourcing out puts and pnp active pull downs formed this device. Each package of the A6810SA-T is available in a lead (Pb) free version, with 100% matte tin leadframe plating.

Features of the A6810SA-T are:(1)controlled output slew rate; (2)high-speed data storage; (3)60 V minimum output breakdown; (4)high data input rate; (5)PNP active pull-downs; (6)low output-saturation voltages; (7)low-power CMOS logic and latches; (8)improved replacements for TL5812, UCN5812, and UCQ5812.

The absolute maximum ratings of the A6810SA-T can be summarized as:(1)logic supply voltage:7.0 V;(2)driver supply voltage:60 V;(3)continuous output current range:-40 mA to +15 mA;(4)input voltage range:-0.3 V to VDD+0.3 V;(5)operating temperature range (suffi x "E"):-40°C to +85°C;(6)operating temperature range (suffi x "K"):-40°C to +125°C;(7)operating temperature range (suffi x "S"):-20°C to +85°C. If you want to know more information such as the electrical characteristics about the A6810SA-T, please download the datasheet in www.seekic.com or www.chinaicmart.com .

Parameters:

Technical/Catalog Information	A6810SA-T
Vendor	Allegro Microsystems Inc
Category	Integrated Circuits (ICs)
Package / Case	18-DIP
Mounting Type	Through Hole
Type	Low Side
Voltage - Supply	-
On-State Resistance	-
Current - Output/Channel	25mA
Current - Peak Output	40mA
Packaging	Tube
Input Type	Parallel/Serial
Number of Outputs	10
Operating Temperature	-20°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	A6810SA T A6810SAT 620 1092 ND 6201092ND 620-1092
