A6801SA-T, A6801SEP-T, A6801SLW-T

A6801SA-T, A6801SEP-T, A6801SLW-T Selling Leads, Datasheet

MFG:Allegro Microsystems Inc  Category:Integrated Circuits (ICs)  Package Cooled:N/A  D/C:09+

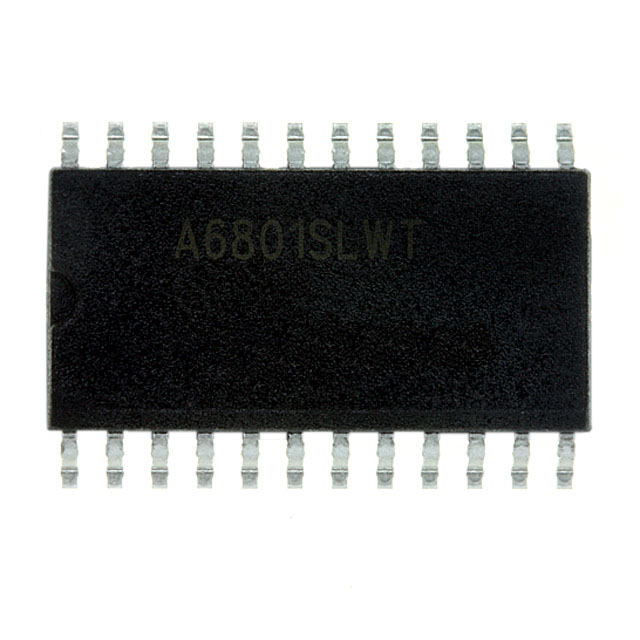

A6801SLW-T Picture

A6801SA-T, A6801SEP-T, A6801SLW-T Datasheet download

Five Points

Part Number: A6801SLW-T

Category: Integrated Circuits (ICs)

MFG: Allegro Microsystems Inc

Package Cooled: N/A

D/C: 09+

Description: IC SINK DRIVER LATCHED 24-SOIC






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

A6801SA-T Suppliers

More A6801SA-T Suppliers

Select All

  • A6801SA-T

  • Vendor: Allegro D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SA-T

  • Vendor: Allegro D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SEP-T

  • Vendor: Allegro D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SLW-T

  • Vendor: Allegro D/C: 07+& Qty: 6000 Note: Hongkong stock/original/Rohs  Adddate: 2024-11-23
  • Inquire Now
  • SZ Sumzi Electronic Co., Ltd   China
    Contact: Ms.Willingsumzi   MSN:sales001@sumzi.com
    Tel: 86-189-38044669
    Fax: 86-755-83299282
    (1)

About A6801SA-T

PDF/DataSheet Download

Datasheet: A6801SA-T

File Size: 447057 KB

Manufacturer: ALLEGRO [Allegro MicroSystems]

Download : Click here to Download

Related PDF Download

Related Part Number

A6801SEP-T Suppliers

More A6801SEP-T Suppliers

Select All

  • A6801SEP-T

  • Vendor: Allegro D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SA-T

  • Vendor: Allegro D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SEP-T

  • Vendor: Allegro D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SLW-T

  • Vendor: Allegro D/C: 07+& Qty: 6000 Note: Hongkong stock/original/Rohs  Adddate: 2024-11-23
  • Inquire Now
  • SZ Sumzi Electronic Co., Ltd   China
    Contact: Ms.Willingsumzi   MSN:sales001@sumzi.com
    Tel: 86-189-38044669
    Fax: 86-755-83299282
    (1)

About A6801SEP-T

PDF/DataSheet Download

Datasheet: A6801SEP-T

File Size: 447057 KB

Manufacturer: ALLEGRO [Allegro MicroSystems]

Download : Click here to Download

Related PDF Download

Related Part Number

A6801SLW-T Suppliers

More A6801SLW-T Suppliers

Select All

  • A6801SLW-T

  • Vendor: Allegro Pack: SOP D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SLW-T

  • Vendor: Allegro D/C: 07+& Qty: 6000 Note: Hongkong stock/original/Rohs  Adddate: 2024-11-23
  • Inquire Now
  • SZ Sumzi Electronic Co., Ltd   China
    Contact: Ms.Willingsumzi   MSN:sales001@sumzi.com
    Tel: 86-189-38044669
    Fax: 86-755-83299282
    (1)
  • A6801SA-T

  • Vendor: Allegro D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SEP-T

  • Vendor: Allegro D/C: 10+& Qty: 5000 Note: new and original  Adddate: 2024-11-23
  • Inquire Now
  • Xinyee International Company   China
    Contact: Ms.BettyLin   MSN:xinyee2008@hotmail.com
    Tel: 0086-0755-83181759
    Fax: 0086-0755-83181759
    (85)
  • A6801SLW-T

  • Vendor: Allegro D/C: 07+& Qty: 6000 Note: Hongkong stock/original/Rohs  Adddate: 2024-11-23
  • Inquire Now
  • SZ Sumzi Electronic Co., Ltd   China
    Contact: Ms.Willingsumzi   MSN:sales001@sumzi.com
    Tel: 86-189-38044669
    Fax: 86-755-83299282
    (1)

About A6801SLW-T

PDF/DataSheet Download

Datasheet: A6801SLW-T

File Size: 447057 KB

Manufacturer: ALLEGRO [Allegro MicroSystems]

Download : Click here to Download

Related PDF Download

Related Part Number

A6801SA-T Parameters

Technical/Catalog InformationA6801SA-T
VendorAllegro Microsystems Inc
CategoryIntegrated Circuits (ICs)
Package / Case22-DIP
Mounting TypeThrough Hole
TypeRelay/Lamp Driver
Voltage - Supply3 V ~ 5.5 V
On-State Resistance-
Current - Output / Channel600mA
Current - Peak Output-
PackagingTube
Input TypeNon-Inverting
Number of Outputs4
Operating Temperature-20°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names A6801SA T
A6801SAT
620 1090 ND
6201090ND
620-1090

A6801SA-T General Description

The A6801SA-T is designed as one kind of DABiC-5 latched sink drivers. It can be used in relays, lamps, solenoids and small dc motors. Features of the A6801-SA-T are:(1)3.3 V to 5 V logic supply range;(2)to 10 MHz data input rate;(3)high-voltage, high-current outputs;(4)darlington current-sink outputs, with improved low-saturation voltages;(5)CMOS, TTL compatible inputs;(6)output transient protection;(7)internal pull-down resistors;(8)low-power CMOS latches.

This device latched-input BiMOS ICs merge high-current, mhigh-voltage outputs with CMOS logic. And the CMOS input section consists of 4 or 8 data ('D' type) latches with associated common CLEAR, STROBE, and OUTPUT ENABLE circuitry. Also the CMOS inputs are compatible with standard CMOS circuits.

The absolute maximum ratings of the A6801SA-T can be summarized as:(1)output voltage, VCE:50 V;(2)supply voltage:7 V;(3)input voltage range, VIN:-0.3 V to VDD+0.3 V;(4)continuous collector current:600 mA;(5)operating temperature range (ambient temperature, TA):-20°C to +85°C;(6)operating temper-ature range (storage temperature, Ts):-55°C to +150°C. If you want to know more information such as the electrical characteristics about the A6801SA-T, please download the datasheet in www.seekic.com or www.chinaicmart.com .

A6801SEP-T Parameters

Technical/Catalog InformationA6801SEP-T
VendorAllegro Microsystems Inc
CategoryIntegrated Circuits (ICs)
Package / Case28-PLCC
Mounting TypeSurface Mount
TypeRelay/Lamp Driver
Voltage - Supply3 V ~ 5.5 V
On-State Resistance-
Current - Output / Channel600mA
Current - Peak Output-
PackagingTube
Input TypeNon-Inverting
Number of Outputs8
Operating Temperature-20°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names A6801SEP T
A6801SEPT

A6801SLW-T Parameters

Technical/Catalog InformationA6801SLW-T
VendorAllegro Microsystems Inc
CategoryIntegrated Circuits (ICs)
Package / Case24-SOIC (7.5mm Width)
Mounting TypeSurface Mount
TypeRelay/Lamp Driver
Voltage - Supply3 V ~ 5.5 V
On-State Resistance-
Current - Output / Channel600mA
Current - Peak Output-
PackagingTube
Input TypeNon-Inverting
Number of Outputs4
Operating Temperature-20°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names A6801SLW T
A6801SLWT
620 1091 ND
6201091ND
620-1091
