MFG:STMicroelectronics (VA) Category:Integrated Circuits (ICs) Package Cooled:6000 D/C:06+07+pb-free

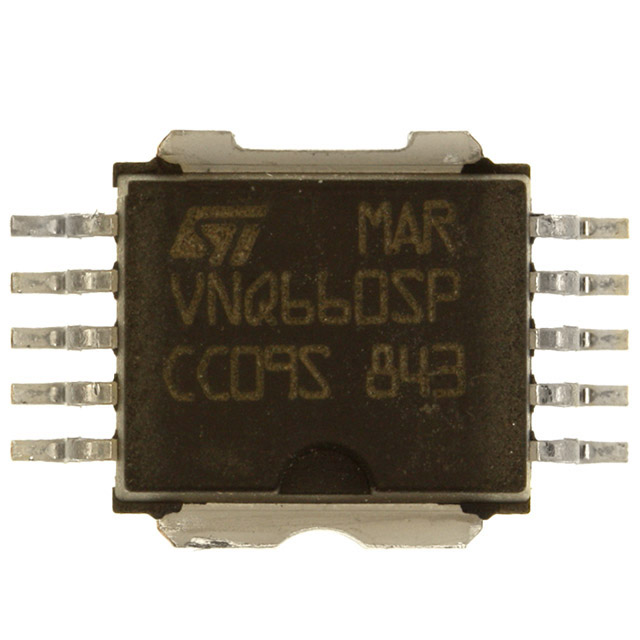

VNQ660, VNQ660SP, VNQ660SP13TR Datasheet download
Category: Integrated Circuits (ICs)
MFG: STMicroelectronics (VA)
Package Cooled: 6000
D/C: 06+07+pb-free
Description: RELAY SSR 4CH HI-SIDE POWERSO-10
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: VNQ660
File Size: 242918 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: VNQ660SP
File Size: 242918 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: VNQ660SP13TR
File Size: 242918 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
| Technical/Catalog Information | VNQ660SP |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Mounting Type | Surface Mount |
| Type | High Side |
| Voltage - Supply | 6 V ~ 36 V |
| On-State Resistance | 40 mOhm |
| Current - Output / Channel | - |
| Current - Peak Output | 10A |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Number of Outputs | 4 |
| Operating Temperature | -40°C ~ 150°C |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | VNQ660SP VNQ660SP 497 2700 5 ND 49727005ND 497-2700-5 |
The VNQ660SP is a monolithic device made by using| STMicroelectronics VIPower M0-3 Technology, intended for driving resistive or inductive loads with one side connected to ground.This device has four independent channels. Builtin thermal shut down and output current limitation protect the chip from over temperature and short circuit.
| Symbol | Parameter | Value | Unit |
|
VCC |
Supply voltage (continuous) |
41 | V |
|
-VCC |
Reverse supply voltage (continuous) |
-0.3 | V |
|
IOUT |
Output current (continuous), per each channel |
Internally limited | A |
|
IR |
Reverse output current (continuous), per each channel |
-15 | A |
|
IIN |
Input current |
+/- 10 | mA |
| ISTAT |
Status current |
+/- 10 | mA |
| IGND |
Ground current at TC25°C (continuous) |
-200 | mA |
| VESD |
Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) |
4000 4000 5000 5000 |
V V V V |
| Ptot |
Power dissipation at TC=25°C |
113.6 | W |
| Tj |
Junction operating temperature |
-40 to 150 | |
|
Tstg |
Storage Temperature |
-65 to 150 | |
|
EC |
Non repetitive clamping energy at TC=25°C |
150 |
mJ |
| Technical/Catalog Information | VNQ660SP13TR |
| Vendor | STMicroelectronics (VA) |
| Category | Integrated Circuits (ICs) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Mounting Type | Surface Mount |
| Type | High Side |
| Voltage - Supply | 6 V ~ 36 V |
| On-State Resistance | 50 mOhm |
| Current - Output / Channel | - |
| Current - Peak Output | 18A |
| Packaging | Digi-Reel? |
| Input Type | Non-Inverting |
| Number of Outputs | 4 |
| Operating Temperature | -40°C ~ 150°C |
| Lead Free Status | Request Inventory Verification |
| RoHS Status | Request Inventory Verification |
| Other Names | VNQ660SP13TR VNQ660SP13TR 497 3315 6 ND 49733156ND 497-3315-6 |
