Product Details

Description



Application

·Relay Driver
·LED Driver


Pinout

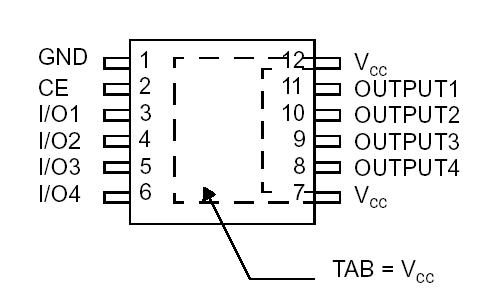

Connection Diagram


Specifications

Symbol Parameter Value Unit

VCC

DC Supply Voltage

 41 V

-VCC

Reverse DC Supply Voltage

 -0.3 V

- IGND

 DC Reverse Ground Pin Current

-250

mA

IOUT

DC Output current

Internally Limited A

-IOUT

 Reverse DC Output Current

-1

A

IIN

DC Input Current

 +/- 10 mA
VESD

Electrostatic discharge (R=1.5K; C=100pF)
- I/On
- OUTn & Vcc

 4000
5000		 V
V
Tj

Junction operating temperature

 Internally Limited

Tstg

Storage Temperature

 -55 to 150




Description

The VNQ500PEP is a monolithic device designed in STMicroelectronics VIPower M0-3 Technology,intended for driving any kind of load with one side connected to ground.

Active current limitation of VNQ500PEP combined with latched thermal shutdown, protect the device against overload.Device automatically turns off in case of ground pin disconnection.
