VNQ5050K-E

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Maximum Power Dissipation :
Package / Case :
Mounting Style : SMD/SMT
Supply Voltage - Min : 4.5 V
Packaging : Tube
Maximum Operating Temperature : + 150 C
Type : High Side
Supply Current : 14 mA


Features:

OUTPUT CURRENT: 12A
3.0 V CMOS COMPATIBLE INPUT
STATUS DISABLE
ON STATE OPEN LOAD DETECTION
OFF STATE OPEN LOAD DETECTION
OUTPUT STUCK TO VCC DETECTION
OPEN DRAIN STATUS OUTPUT
UNDERVOLTAGE SHUT-DOWN
OVERVOLTAGE CLAMP
THERMAL SHUT DOWN
CURRENT AND POWER LIMITATION
VERY LOW STAND-BY CURRENT
PROTECTION AGAINST LOSS OF GROUND AND LOSS OF VCC
 VERY LOW ELECTROMAGNETIC SUSCEPTIBILITY
OPTIMIZED ELECTROMAGNETIC EMISSION
REVERSE BATTERY PROTECTION (**)
IN COMPLIANCE WITH THE 2002/95/EC EUROPEAN DIRECTIVE

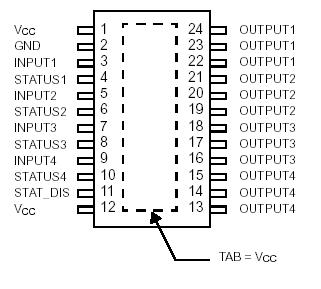

Pinout




Specifications

Parameter	Symbol	Value	Units
Power supply voltage	VCC	41	V
Reverse supply voltage	VC	0.3	MA
DC reverse ground pin current	-IGND	200	A
Output current (continuos)	IOUT	Internally limited	mA
DC Reverse Ground Pin Current	- IOUT	24	mA
DC Output Current	IIN	Internally Limited	mA
Reverse DC Output Current	ICSD	- 15	A
DC Input Current	-ICSENSE	+10/-1	°C/W
DC Status Current	VCSENSE	+10/-1	V
Electrostatic discharge (R = 1.5 KΩ; C = 100 pF)	E MAX(1)	2000	V
Junction operating temperature	Tj	-40 to 150	°C
Storage temperature	Tstg	-55 to 150	°C

Description

The VNQ5050K-E is a monolithic device made using STMicroelectronics VIPower technology. VNQ5050K-E is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).The device detects open load condition both in on and off state, when STAT_DIS is left open or driven low.

Output shorted to VCC is detected in the off state. When STAT_DIS is driven high, the STATUS pin is in a high impedance condition. Output current limitation protects the device in overload condition. In case of long duration overload, the  VNQ5050K-E device limits the dissipated power to safe level up to thermal shut-down intervention. . Thermal shut-down with automatic restart allows the device to recover normal operation as soon as fault condition disappears.

Parameters:

Technical/Catalog Information	VNQ5050K-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSSO-24
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	4.5 V ~ 36 V
On-State Resistance	50 mOhm
Current - Output / Channel	-
Current - Peak Output	19A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VNQ5050K E VNQ5050KE
