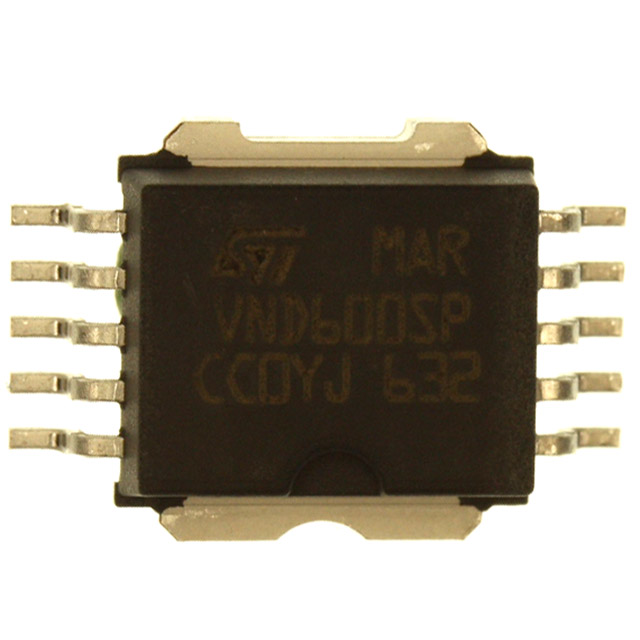

Part Number: VND600SP

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics (VA)

Package Cooled: SSOP

D/C: 05+

Description: RELAY SSR 2CH HI-SIDE POWERSO-10

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

VND600PEP General Description

The VND600PEP is a monolithic device made using STMicroelectronics VIPower M0-3 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device has two channels in high side configuration; each channel has an analog sense output on which the sensing current is proportional (according to a known ratio) to the corresponding load current. Built-in thermal shut-down and outputs current limitation protect
the chip from over temperature and short circuit. Device turns off in case of ground pin disconnection.

VND600PEP Maximum Ratings

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	41	V
- V_CC	Reverse Supply Voltage	-0.3	V
- I_gnd	DC reverse ground pin current	-200	mA
I_OUT	Output Current	Internally limited	A
- I_OUT	Reverse Output Current	-21	A
I_IN	Input Current	+/- 10	mA
V_CSENSE	Current sense maximum voltage	-3 +15	V V
V_ESD	Electrostatic Discharge (Human Body Model: R=1.5KW; C=100pF) - INPUT - STATUS - OUTPUT - V_CC	4000 2000 5000 5000	V V V V
P_tot	Power Dissipation T_C=25	96	W
T_j	Junction Operating Temperature	Internally limited
T_c	Case Operating Temperature	- 40 to 150
T_stg	Storage Temperature	- 55 to 150

VND600PEP Features

· DC SHORT CIRCUIT CURRENT: 25A
· CMOS COMPATIBLE INPUTS
· PROPORTIONAL LOAD CURRENT SENSE
· UNDERVOLTAGE AND OVERVOLTAGE SHUT-DOWN
· OVERVOLTAGE CLAMP
· THERMAL SHUT-DOWN
· CURRENT LIMITATION
· VERY LOW STAND-BY POWER DISSIPATION
· PROTECTION AGAINST:
·LOSS OF GROUND AND LOSS OF V_CC· REVERSE BATTERY PROTECTION (*)

VND600PEP Connection Diagram

VND600SP Parameters

Technical/Catalog Information	VND600SP
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	30 mOhm
Current - Output / Channel	-
Current - Peak Output	40A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	VND600SP VND600SP 497 2711 5 ND 49727115ND 497-2711-5

VND600SP General Description

The VND600SP is a monolithic device made using STMicroelectronics VIPower M0-3 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active V_CC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device has two channels in high side configuration; each channel has an analog sense output on which the sensing current is proportional (according to a known ratio) to the corresponding load current. Built-in thermal shut-down and outputs current limitation protect the chip from over temperature and short circuit. Device turns off in case of ground pin disconnection.

VND600SP Maximum Ratings

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage	41	V
-V_CC	Reverse Supply Voltage	-0.3	V
- I_GND	DC Reverse Ground Pin Current	-200	mA
I_OUT	Output current	Internally Limited	A
I_R	Reverse Output Current	-21	A
I_IN	Input Current	+/- 10	mA
V_CSENSE	Current Sense Maximum Voltage	-3 +15	V V
V_ESD	Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - CURRENT SENSE - OUTPUT - V_CC	4000 2000 5000 5000	V V V V
_{E_MAX}	Maximum Switching Energy (L=0.13mH; R_L=0; V_bat=13.5V; T_jstart=150; I_L=40A)	145	mJ
P_tot	Power dissipation at T_c=25°C	96.1	W
T_j	Junction operating temperature	Internally Limited
T_c	Case Operating Temperature	- 40 to 150
T_STG	Storage Temperature	-55 to 150

VND600SP13TR Parameters

Technical/Catalog Information	VND600SP13TR
Vendor	STMicroelectronics (VA)
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	30 mOhm
Current - Output / Channel	-
Current - Peak Output	40A
Packaging	Digi-Reel?
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Request Inventory Verification
RoHS Status	Request Inventory Verification
Other Names	VND600SP13TR VND600SP13TR 497 3303 6 ND 49733036ND 497-3303-6
