VND05B, VND05BSP, VND05BX Datasheet download
Category: Integrated Circuits (ICs)
MFG: STMicroelectronics
Package Cooled: SOP10
D/C: 08+
Description: RELAY SSR ISO HISIDE 10POWERSOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: VND05B
File Size: 89310 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: VND05BSP
File Size: 232350 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: VND05
File Size: 232350 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
| Technical/Catalog Information | VND05B |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | Heptawatt-7 (Vertical, Bent and Staggered Leads) |
| Mounting Type | Through Hole |
| Type | High Side |
| Voltage - Supply | 6 V ~ 26 V |
| On-State Resistance | 130 mOhm |
| Current - Output / Channel | 1.6A |
| Current - Peak Output | 9A |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Number of Outputs | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | VND05B VND05B |
The VND05B, VND05B (011Y), VND05B (012Y) is a monolithic device designed in STMicroelectronics VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. This device has two channels, and a common diagnostic. Built-in thermal shutdown protects the chip from overtemperature and short circuit. The status output provides an indication of open load in on state, open load in off state, overtemperature conditions and stuck-on to VCC.
| Symbol | Parameter | Value | Unit | |
| V(BR)DSS |
Drain-Source breakdown voltage |
40 | V | |
|
IOUT |
Output current (continuous) at Tc=85°C |
9 | A | |
|
IOUT(RMS) |
RMS Output current at Tc=85°C and f > 1Hz |
9 | A | |
| IR |
Reverse output current at Tc=85°C |
-9 | A | |
|
IIN |
Input current |
+/- 10 |
mA | |
|
-VCC |
Reverse supply voltage |
-4 |
V | |
|
ISTAT |
Status current |
+/- 10 |
mA | |
| VESD |
Electrostatic discharge(R=1.5k, C=100pF) |
2000 | V | |
|
PTOT |
Power dissipation at Tc=25°C | 59 |
W | |
| Tj |
Junction operating temperature |
-40 to 150 | ||
|
TSTG |
Storage Temperature |
-55 to 150 |
| |
| Technical/Catalog Information | VND05BSP |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |

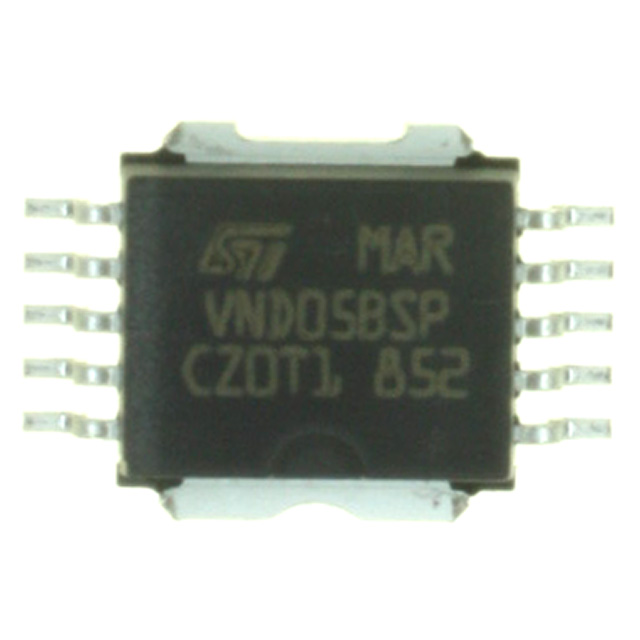

| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Mounting Type | Surface Mount |
| Type | High Side |
| Voltage - Supply | 6 V ~ 26 V |
| On-State Resistance | 130 mOhm |
| Current - Output / Channel | 1.6A |
| Current - Peak Output | 9A |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Number of Outputs | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | VND05BSP VND05BSP 497 3089 5 ND 49730895ND 497-3089-5 |
The VND05BSP is a monolithic device made using STMicroelectronics VIPower Technology,intended for driving resistive or inductive loads with one side grounded. This device has two channels, and a common diagnostic. Built-in thermal shut-down protects the chip from over temperature and short circuit.
The status output provides an indication of open load in on state, open load in off state,overtemperature conditions and stuck-on to VCC.
| Symbol | Parameter | Value | Unit | |
| V(BR)DSS |
Drain-Source breakdown voltage |
40 | V | |
|
IOUT |
Output current (continuous) at Tc=85°C |
9 | A | |
|
IOUT(RMS) |
RMS Output current at Tc=85°C and f > 1Hz |
9 | A | |
| IR |
Reverse output current at Tc=85°C |
-9 | A | |
|
IIN |
Input current |
+/- 10 |
mA | |
|
-VCC |
Reverse supply voltage |
-4 |
V | |
|
ISTAT |
Status current |
+/- 10 |
mA | |
| VESD |
Electrostatic discharge(R=1.5k, C=100pF) |
2000 | V | |
|
PTOT |
Power dissipation at Tc=25°C | 59 |
W | |
| Tj |
Junction operating temperature |
-40 to 150 | ||
|
TSTG |
Storage Temperature |
-55 to 150 |
| |
