VND5050K-E

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Maximum Power Dissipation :
Package / Case :
Supply Current : 6 mA
Mounting Style : SMD/SMT
Supply Voltage - Min : 4.5 V
Packaging : Tube
Maximum Operating Temperature : + 150 C
Type : High Side


Features:

Self limiting of fast thermal transients
Protection against loss of ground and loss of VCC
Thermal shut down
Reverse battery protection (see Figure 28)
Electrostatic discharge protection


Application

All types of resistive, inductive and capacitive loads

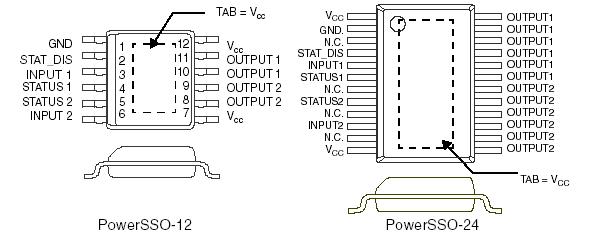

Pinout




Specifications

Parameter	Symbol	Value	Units
DC supply voltage	VCC	41	V
Reverse DC supply voltage	VC	0.3	MA
DC reverse ground pin current	-IGND	200	A
DC output current	IOUT	Internally limited	mA
Reverse DC output current	- IOUT	24	mA
DC input current	IIN	-1 to 10	mA
DC current sense disable input current	ICSD
DC reverse CS pin current	-ICSENSE	200	°C/W
Current sense maximum voltage	VCSENSE	VCC - 41 to +VCC	V
Maximum switching energy (single pulse) (L = 0.3mH; RL = 0?; Vbat = 13.5V; Tjstart = 150°C; IOUT = IlimL(Typ.) )	E MAX(1)	109	mJ
Electrostatic Discharge (Human Body Model: R = 1.5k?; C = 100pF) - Input - Current sense - CS_DIS - Output - VCC	VESD	4000 2000 4000 5000 5000	V V V V V
Charge device model (CDM-AEC-Q100-011)	VESD	750	V
Junction operating temperature	Tj	-40 to 150	°C
Storage temperature	Tstg	-55 to 150	°C

Description

The VND5050K-E and VND5050J-E is a monolithic device made using STMicroelectronics VIPower M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active V VCC CC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). The device detects open load condition both in on and off state, when STAT_DIS is left open or driven low.

Output shorted to V VCC CC is detected in the off state. When STAT_DIS is driven high, STATUS pin is in high impedance state. Output current limitation protects the device in overload condition. In case of long overload duration, the device limits the dissipated power to safe level up to thermal shut-down intervention. Thermal shut-down with automatic restart allows the device VND5050K-E to recover normal operation as soon as fault condition disappears..

Parameters:

Technical/Catalog Information	VND5050K-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSSO-24
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	4.5 V ~ 36 V
On-State Resistance	50 mOhm
Current - Output / Channel	-
Current - Peak Output	18A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VND5050K E VND5050KE
