MFG:Atmel Category:Integrated Circuits (ICs) Package Cooled:28-SOIC D/C:2010+
U6815BM-NFL, U6815BM-NFLG3, U6815BM-NFLG3Y Datasheet download
Category: Integrated Circuits (ICs)
MFG: Atmel

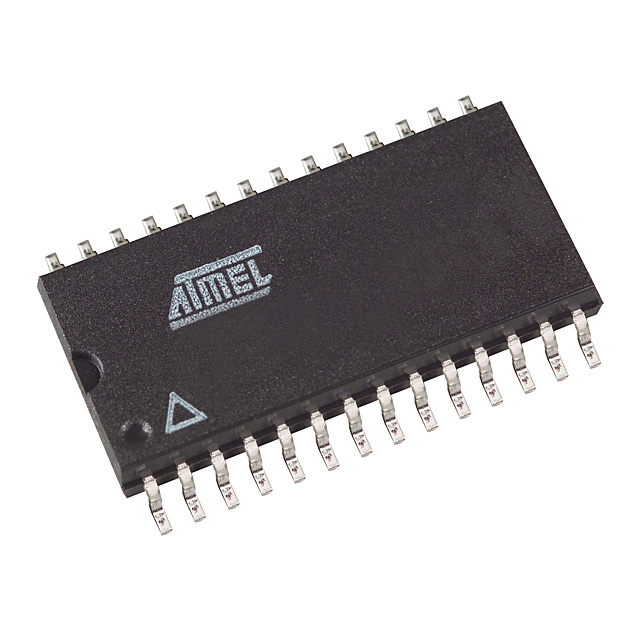

Package Cooled: 28-SOIC
D/C: 2010+
Description: IC DRIVER HEX DUAL W/DRVR 28SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: U6815BM-NFL
File Size: 282547 KB
Manufacturer: ATMEL [ATMEL Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: U6815BM-NFLG3
File Size: 282547 KB
Manufacturer: ATMEL [ATMEL Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: U6801B
File Size: 46314 KB
Manufacturer: Atmel
Download : Click here to Download
| Technical/Catalog Information | U6815BM-NFL |
| Vendor | Atmel |
| Category | Integrated Circuits (ICs) |
| Package / Case | 28-SOIC |
| Mounting Type | Surface Mount |
| Type | High Side/Low Side Driver |
| Voltage - Supply | 7 V ~ 40 V |
| On-State Resistance | 2 Ohm, 1.5 Ohm |
| Current - Output / Channel | 600mA |
| Current - Peak Output | 950mA |
| Packaging | Tube |
| Input Type | Serial |
| Number of Outputs | 12 |
| Operating Temperature | -40°C ~ 150°C |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | U6815BM NFL U6815BMNFL |
| Technical/Catalog Information | U6815BM-NFLG3Y |
| Vendor | Atmel |
| Category | Integrated Circuits (ICs) |
| Package / Case | 28-SOIC |
| Mounting Type | Surface Mount |
| Type | High Side/Low Side Driver |
| Voltage - Supply | 7 V ~ 40 V |
| On-State Resistance | 2 Ohm, 1.5 Ohm |
| Current - Output / Channel | 600mA |
| Current - Peak Output | 950mA |
| Packaging | Tape & Reel (TR) |
| Input Type | Serial |
| Number of Outputs | 12 |
| Operating Temperature | -40°C ~ 150°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | U6815BM NFLG3Y U6815BMNFLG3Y |
