U6801B

Features: Input comparator with Schmitt-trigger characteristicInput clamping current capability of ±10 mAIntegrated protection cells (EMC, ESD, RF) dedicated to all input stagesShutdown by junction-temperature monitorReset with hysteresis at low voltageESD protection acording to human body model:2...

product image

U6801B Picture
See larger image
SeekIC No. : 004535060 Detail

U6801B: Features: Input comparator with Schmitt-trigger characteristicInput clamping current capability of ±10 mAIntegrated protection cells (EMC, ESD, RF) dedicated to all input stagesShutdown by junction-...

U6801B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U6801B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Input comparator with Schmitt-trigger characteristic
Input clamping current capability of ±10 mA
Integrated protection cells (EMC, ESD, RF) dedicated to all input stages
Shutdown by junction-temperature monitor
Reset with hysteresis at low voltage
ESD protection acording to human body model:
2000 V (C = 100 pF, R = 1.5 k)
Output stage:
  Short-circuit protected
  Load-dump protected @ 1 k
  Jump start possible


Pinout

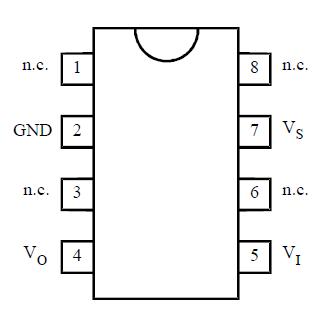

Connection Diagram


Specifications

Parameters Symbol Value Unit
Supply voltage VS 7.0 V
Ambient temperature range Tamb 40 to +125
Storage temperature range Tstg 50 to +150
Maximum junction temperature Tj +150



Description

The singel-channel driver IC U6801B includes one non-inverted and current-limited output stage with an open collector. Thermal shutdown protects the output against critical junction temperatures. The output of U6801B can sink a current of 20 mA. The digital input has Schmitt-trigger function with pull-up resistors to 5 V.
