Product Details

Description



Features:

Three input comparators with Schmitt-trigger characteristic
Input clamping current capability of ±10 mA
Integrated protection cells (EMC, ESD, RF) dedicated to all input stages
Reset with hysteresis at low voltage
ESD protection according to human body model: ±2000 V (C = 100 pF, R = 1.5 k)
Output stages: Short-circuit protected Load-dump protected @ 1 k No crosstalk on adjacent channels Jump start possible


Pinout

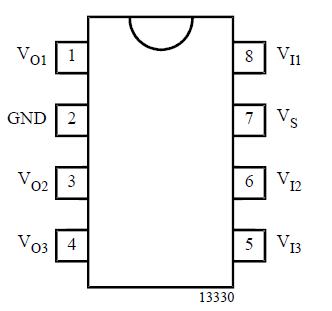

Connection Diagram


Specifications

Parameters Symbol Value Unit
Supply voltage VS 7.0 V
Ambient temperature range Tamb 40 to +125
Storage temperature range Tstg 50 to +150
Maximum junction temperature Tj +150



Description

The triple-driver IC of U6802B includes three non-inverted and current-limited output stages with an open collector. Each output can sink 20 mA, parallel output operation is possible. The digital inputs of U6802B have Schmitt-trigger function with pull-up resistors to 5 V.
