Features:

` Six input comparators with Schmitt-trigger characteristic
` Input clamping current capability to ±10 mA
` Integrated protection cells (EMC, ESD, RF) dedicated to all input stages
` Common shutdown by junction temperature monitor
` Low voltage reset with hysteresis
` ESD protection to human body model: ±2000 V (C = 100 pF, R = 1.5 k)
` Output stages:
Short circuit protected with diode
Load-dump protected @ 1 k
No crosstalk on adjacent channels
Clamping current @ 2 mA
Jump start possible

Pinout

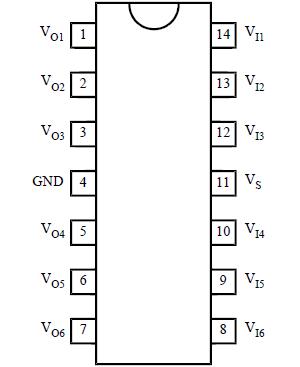

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Supply voltage	V_S	7.0	V
Ambient temperature range	T_amb	-40to+125
Storage temperature rang	T_stg	-50to+150
Maximum junction temperature	T_j	+150

Description

The hex-driver IC U6805B includes 6 non-inverted and current limited output stages with an open collector. Common thermal shutdown protects outputs against critical junction temperature.

Each output of U6805B can sink 20 mA, parallel output operation is possible. The digital inputs have Schmitt-trigger function with pull-up current sources to 5 V.
