MFG:Melexis Inc Category:Integrated Circuits (ICs) Package Cooled:1 D/C:05+

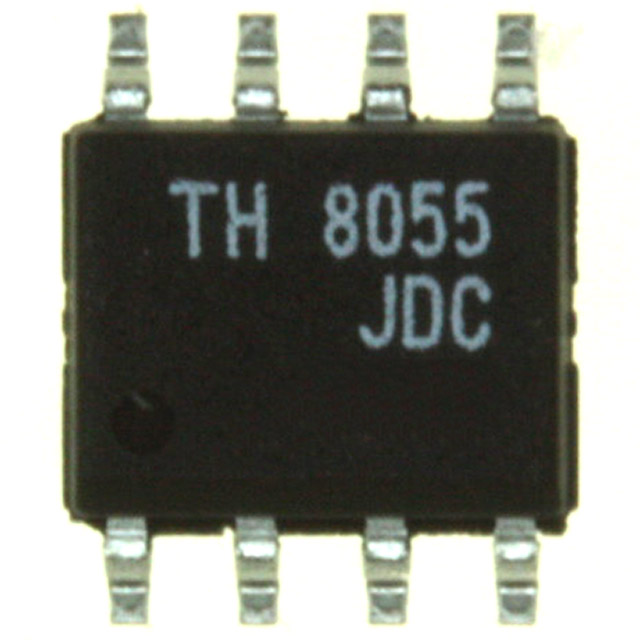

TH8055, TH8055JDC, TH8056KDC Datasheet download
Category: Integrated Circuits (ICs)
MFG: Melexis Inc
Package Cooled: 1
D/C: 05+
Description: IC TXRX SINGLE WIRE CAN 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TH8055
File Size: 278671 KB
Manufacturer: MICRO-ELECTRONICS [Micro Electronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TH8055
File Size: 278671 KB
Manufacturer: MICRO-ELECTRONICS [Micro Electronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TH8055
File Size: 278671 KB
Manufacturer: MICRO-ELECTRONICS [Micro Electronics]
Download : Click here to Download
| Parameter | Symbol | Condition | Min | Max | Unit |
| Supply voltage | VBAT | -0.3 | 18 | V | |
| Short-term supply voltage | VBAT.LD | Load dump; t<500ms | 40 | V | |
| Jump start; t<1 min | 27 | ||||
| Transient supply voltage | VBAT.TR1 | ISO 7637/1 pulse 1 [1] | -50 | V | |
| Transient supply voltage | VBAT.TR2 | ISO 7637/1 pulses 2 [1] | 100 | V | |
| Transient supply voltage | VBAT.TR3 | ISO 7637/1 pulses 3A, 3B | -200 | 200 | V |
| CANH voltage | VCANH | VBAT=0 | -20 | 40 | V |
| Transient bus voltage | VCANHTR1 | ISO 7637/1 pulse 1 [2] | -50 | V | |
| Transient bus voltage | VCANHTR2 | ISO 7637/1 pulses 2 [2] | 100 | V | |
| Transient bus voltage | VCANHTR3 | ISO 7637/1 pulses 3A, 3B [2] | -200 | 200 | V |
| DC voltage on pin LOAD | VLOAD | via RT > 2k | -40 | 40 | V |
| DC voltage on pins TxD,MODE1,MODE0,RxD | VDC | -0.3 | 7 | V | |
| ESD capability of CANH | VESDBUS | Human body model Equivalent to discharge 100pF with 1.5k |
-4000 | 4000 | V |
| ESD capability of any other pins | VESD | Human body model Equivalent to discharge 100pF with 1.5k |
-2000 | 2000 | V |
| Maximum latch-up free current at any Pin | ILATCH | -500 | 500 | mA | |
| Maximum power dissipation | Ptot | At TA = 125 °C | 197 [3] | mW | |
| Thermal impedance | JA | in free air | 152 | K/W | |
| Storage temperature | TSTG | -55 | 150 | °C | |
| Junction temperature | TJ | -40 | 150 | °C |
Fully compatible with J2411 Single Wire CAN specification for Class B in vehicle communications
30 A typical power consumption in sleep mode independent from CAN voltage range
Operating voltage range 5.18V
Up to 100 kbps high-speed transmission mode
Up to 40 kbps bus speed
Selective BUS wakeup
Low RFI due to output wave shaping
Fully integrated receiver filter
Bus terminals proof against short-circuits and transients in automotive environment
Loss of ground protection
Protection against load dump, jump start
Thermal overload and short circuit protection
ESD protection of 4 kV on CAN pin (2kV on any other pin)
Under- and over voltage lock out
Bus dominant timeout feature
| Technical/Catalog Information | TH8055JDC |
| Vendor | Melexis Inc |
| Category | Integrated Circuits (ICs) |
| Number of Drivers/Receivers | 1/1 |
| Type | Transceiver |
| Voltage - Supply | 5 V ~ 18 V |
| Package / Case | 8-SOIC |
| Packaging | Tube |
| Protocol | CAN |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TH8055JDC TH8055JDC |
