Product Details

Description



Features:

Single wire LIN transceiver
 Compatible to LIN Protocol Specification, Rev. 1.1
 Compatible to ISO9141 functions
 Up to 20 kbps bus speed
 Low RFI due to slew rate control
Fully integrated receiver filter
 Protection against load dump, jump start
 Bus terminals proof against short-circuits and transients in the
automotive environment
 Very low (30 A) typical power consumption in recessive state and therefore no sleep mode necessary
 Thermal overload and short circuit protection
 High impendance Bus pin in case of loss of ground and undervoltage condition
 8-pin SOIC
±4kV ESD protection on Bus pin

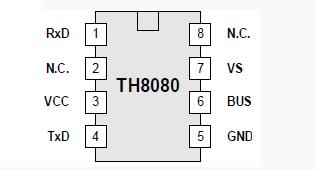

Pinout

  Connection Diagram


Specifications

Parameter Symbol Conditions Min. Max. Unit
Batterry Supply Voltage VS   -0.3 +27 V
Supply Voltage VCC   -0.3 +7 V
Short-term supply voltage VS.ld Load dump; t<500ms   +40 V
Transient supply voltage VS.tr1 ISO 7637/1 pulse 1[1] -150   V
Transient supply voltage VS.tr2 ISO 7637/1 pulses 2[1]   +100 V
Transient supply voltage VS.tr3 ISO 7637/1 pulses 3A, 3B -150 +150 V
BUS voltage VBUS   -40 +40 V
Transient bus voltage VBUS.tr1 ISO 7637/1 pulse 1 [2] -150   V
Transient bus voltage VBUS.tr2 ISO 7637/1 pulse 1 [2]   +100 V
Transient bus voltage VBUS.tr3 ISO 7637/1 pulses 3A, 3B [2] -150 +150 V
DC voltage on pins TxD, RxD VDC Human body model, equivalent
to discharge 100pF with 1.5k
-0.3 +7 V
ESD capability of pin BUS ESDBUSHB Human body model, equivalent
to discharge 100pF with 1.5k
-4 +4 kV
ESD capability of any other pins ESDHB   -2 +2 kV
Maximum latch up free current at any Pin ILATCH At Tamb = +125 °C -500 +500 mA
Maximum power dissipation Ptot     197 mW
Thermal impedance JA in free air   152 K/W
Storage temperature Tstg   -55 +150 °C
Junction temperature Tvj   -40 +150 °C



Description

The TH8080 is a physical layer device for a single wire data link capable of operating in applications where high data rate is not required and a lower data rate can achieve cost reductions in both the physical media components and in the microprocessor which use the network.The TH8080 is designed in accordance to the physical layer definition of the LIN Protocol Specification, Rev. 1.1 . The IC furthermore can be used in ISO9141 systems.

Because of the very low current consumption of the TH8080 in the recessive state it's particularly suitable for ECU applications with hard standby current requirements, whereby no sleep/wake up control due to the microprocessor is necessary.
