STTH1004SFP3, STTH102A, STTH106A

Table of contents:
Info of STTH1004SFP3
Info of STTH102A
Info of STTH106A

STTH1004SFP3, STTH102A, STTH106A Selling Leads, Datasheet

MFG:STMicroelectronics (VA) Category:Discrete Semiconductor Products Package Cooled:BULK D/C:2008

STTH1004SFP3, STTH102A, STTH106A Datasheet download

Five Points

Part Number: STTH102A

Category: Discrete Semiconductor Products

MFG: STMicroelectronics (VA)

Package Cooled: BULK

D/C: 2008

Description: DIODE ULT FAST 200V 1A SMA

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

STTH102A Parameters

Technical/Catalog Information	STTH102A
Vendor	STMicroelectronics (VA)
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	970mV @ 1A
Reverse Recovery Time (trr)	20ns
Current - Reverse Leakage @ Vr	1A @ 200V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount

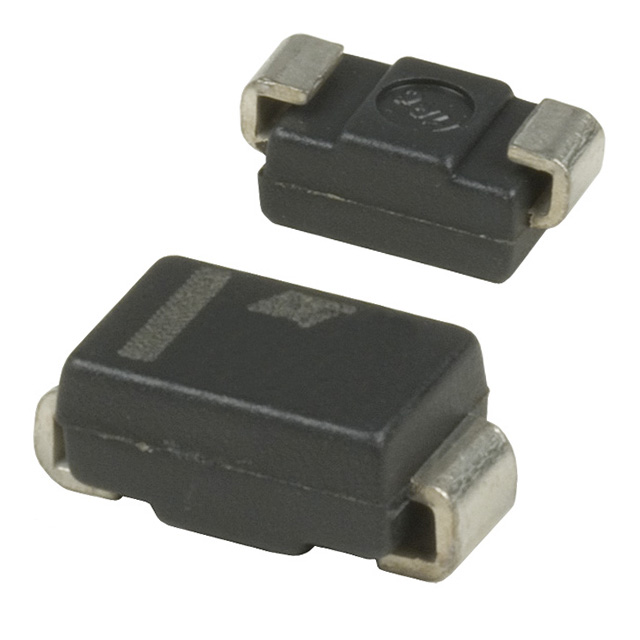

Package / Case	DO-214AC, SMA
Packaging	Digi-Reel?
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STTH102A STTH102A 497 2500 6 ND 49725006ND 497-2500-6

STTH102A General Description

The STTH102A, which is using ST's new 200V lanar technology, is specially suited for switching ode base drive & transistor circuits.

The device is also intended for use as a free wheeling diode in power supplies and other power switching applications.

STTH102A Maximum Ratings

Symbol	Parameter		Value	Unit
V_RRM	Repetitive peak reverse voltage		200	V
I_F(AV)	Average forward current	Tc = 130°C = 0.5	1	A
I_FSM	Surge non repetitive forward current	tp = 10ms sinusoidal	40	A
T_stg	Storage temperature range		+ 175	°C
T_j	Maximum operating junction temperature		175	°C

STTH102A Features

Very low conduction losses
Negligible switching losses
Low forward and reverse recovery times
High junction temperature
